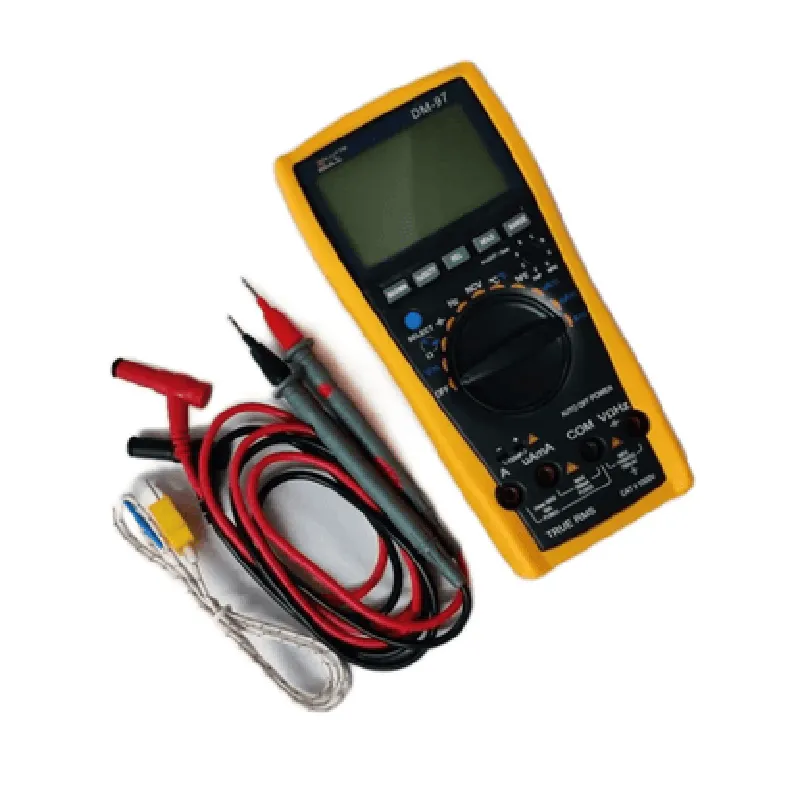

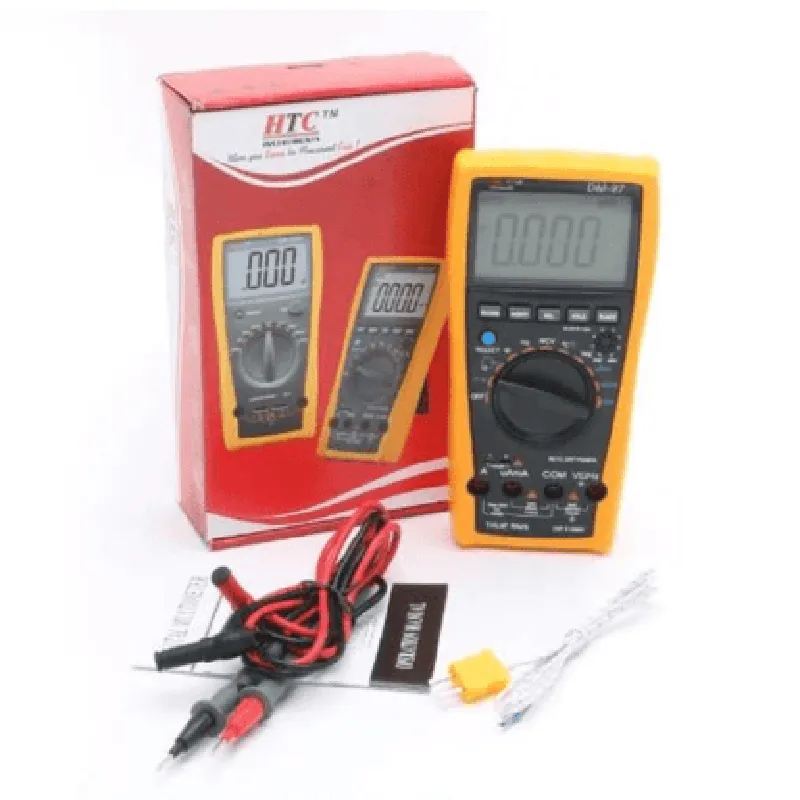

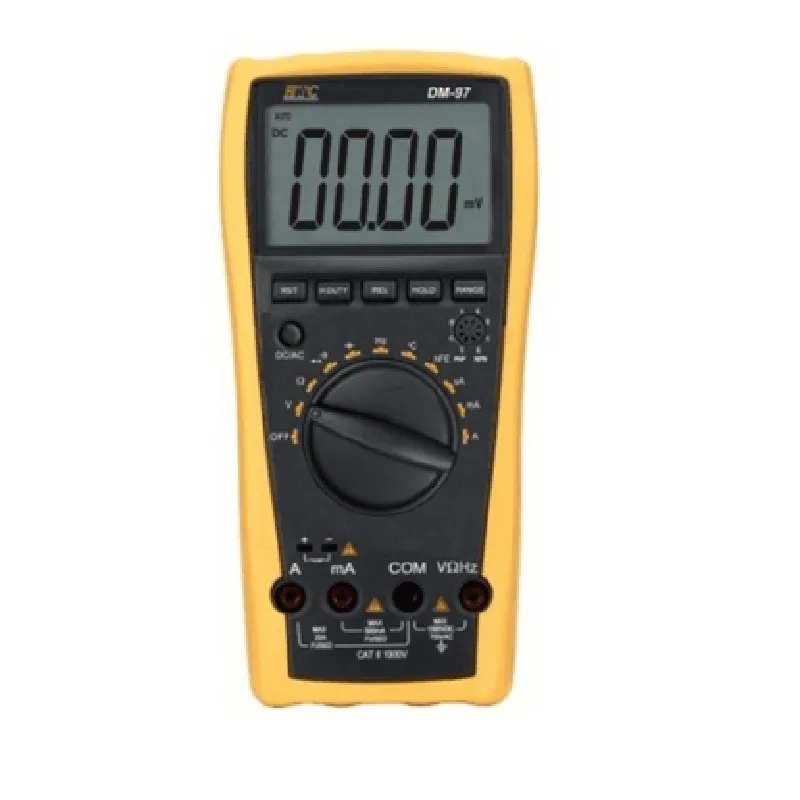

Description: 1. Feature-rich Multimeter: HTC DM-97 is a versatile digital multimeter (DMM) with an extensive measurement range, capable of measuring DC voltage, AC voltage, resistance, capacitance, frequency, and temperature. 2. High Accuracy and Resolution: With a high accuracy of ±(0.5% + 3 digits) and a resolution of 0.01 for most measurements, the HTC DM-97 ensures precise readings for professional applications. 3. Auto Ranging Function: This multimeter includes an auto ranging function that automatically selects the appropriate range for the measurement, making it convenient for users to take readings with minimum setup time. 4. Data Hold and Min/Max: The data hold and min/max functions allow you to lock in readings for comparison or recording the extreme values during different measurements. 5. Input Protection: HTC DM-97 comes with fuse protection on all input terminals, safeguarding against overloads, reverse polarity, and short circuits. 6. Backlit LCD Display: The multimeter feature
| Specification | Details |
|---|---|
| Measurement Range | 400 mV to 20 A (AC) and 200 mV to 10 A (DC) |
| Accuracy | ±0.5% (DC) ±1.2% (AC) |
| Resolution | 0.01% of DC range 0.05% of AC range |
| Measurement Modes | Voltage (DC and AC) Current (DC and AC) Resistance (200kΩ) Diode test |
| Frequency Range | 20 Hz to 400 kHz (AC) |
| Temperature Range | -10°C to 40°C |
| Display | 3.5-inch LCD with backlight |
| Operating Power | 9V DC 100 mA |
| Battery Life | Up to 200 hours |
| Dimensions | 170mm x 90mm x 40mm |
