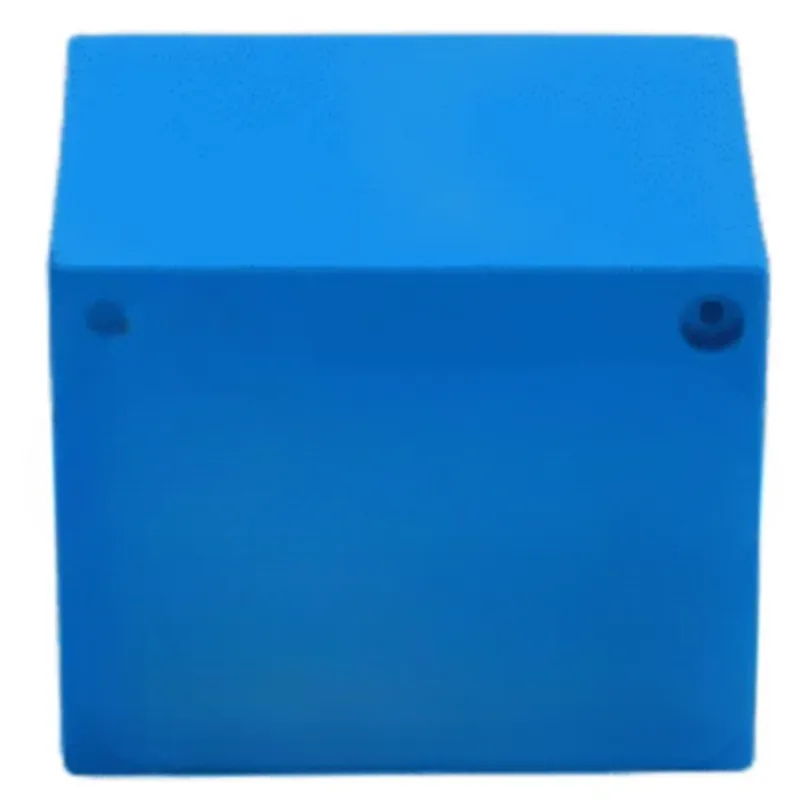

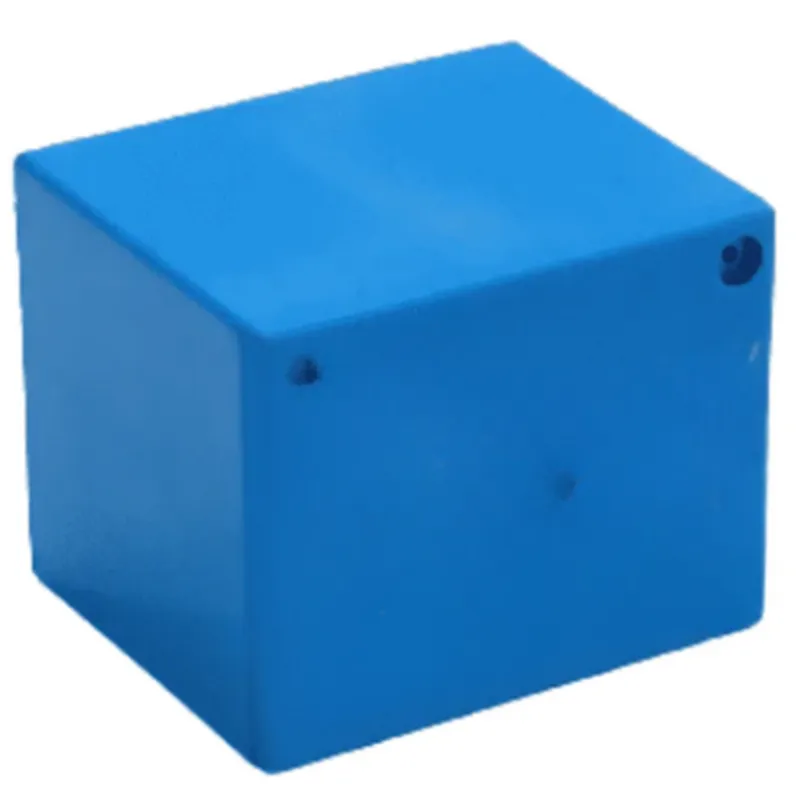

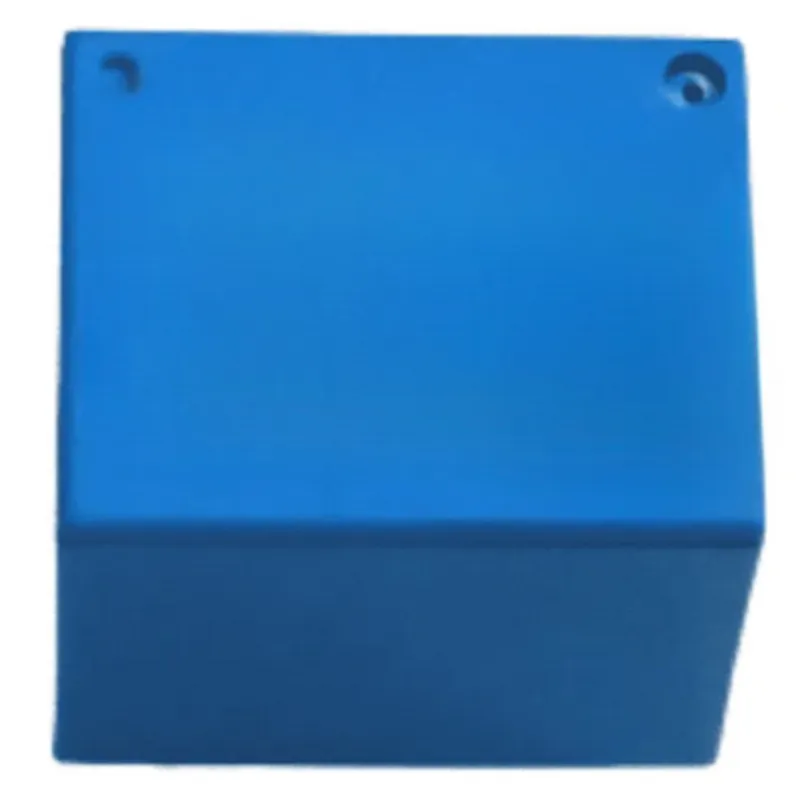

Description: 1. A 5V 10A PCB Mount Sugar Cube Relay is a compact switching component with a SPDT (Single Pole Double Throw) configuration, suitable for use in IoT projects and electronics applications that require high current handling capacity. 2. Features: This relay has a operating voltage range of 4V to 15V DC and can handle up to 10A of current at 25°C ambient temperature. It mounts directly onto printed circuit boards (PCB) for easy integration. Each switch position is electrically isolated from the other, providing reliable switching operations. 3. Design: The compact sugar cube design of this relay ensures minimal board space requirements while delivering robust switching capabilities. Its small footprint makes it an ideal choice for space-constrained projects. 4. Versatility: This SPDT relay can be used for a variety of applications, including motor control, lamp switching, solenoid valve operation, and signal routing in IoT systems. Its high current handling capacity expands its use c
| Specification | Details |
|---|---|
| Type | Single Pole Double Throw (SPDT) relay |
| Voltage Rating | DC 5V AC 30V |
| Current Rating | Continuous: 10A Peak: 20A |
| Power Consumption | Low power consumption typically <1mW |
| PCB Mount Type | Through-hole or Surface mount |
| Package Size | Sugar Cube style approximately 13x9x7mm |
| Switching Speed | Fast switching speed typically <10ms |
| Contact Rating | 10A @ 250V AC 30A @ 125V DC |
| Operating Temperature | -20°C to +85°C |
| Mounting Method | PCB mount with through-hole or SMD pads |
| Relay Type | Electromechanical relay |
1. Function: This 4-channel l...

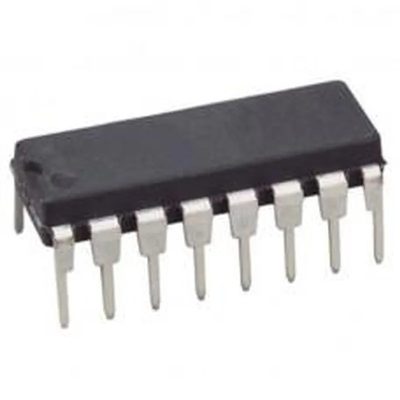

1. The CD4060 is a 14-stage r...
