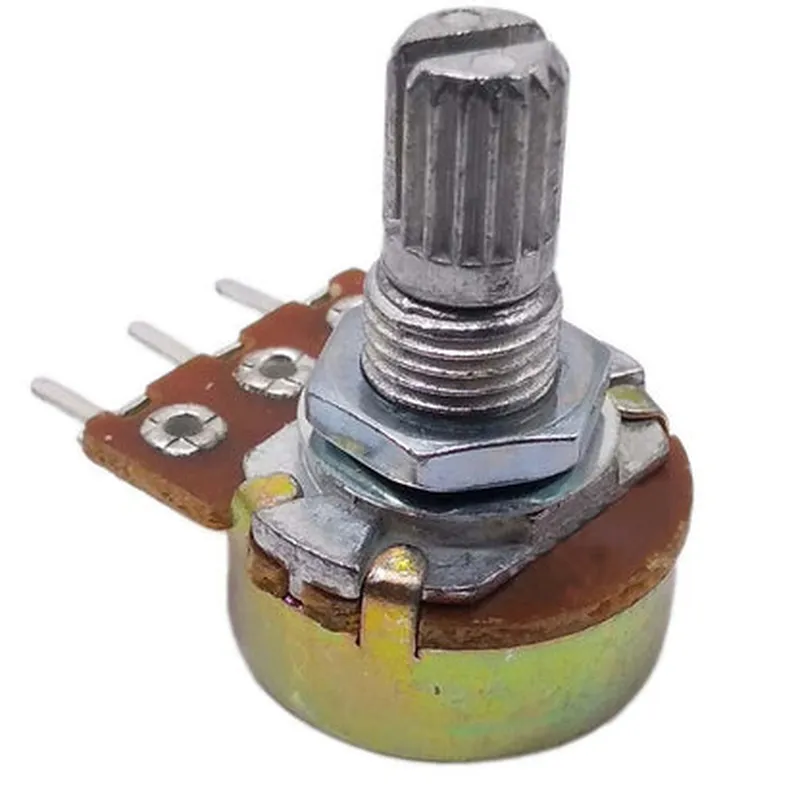

Description: 1K Pot Potentiometer (Pack of 5): 1. Adjustable Resistance: Each potentiometer in this pack offers a 1KΩ resistance that can be adjusted continuously between 0Ω and the full rated value, providing precise control over electrical current flow or voltage levels. 2. Linear Taper: These potentiometers boast a linear taper design, meaning the resistance changes linearly with respect to the angle of rotation. This results in smooth, consistent calibration for various applications. 3. Carbon Composition: The 1K Pot Potentiometer is built using carbon composition resistive elements, delivering reliable and stable performance even under heavy usage. 4. Quadruple Terminal: Each potentiometer features four terminals that enable wiring in various configurations: voltage source input (V), ground (G), variable output (Wiper), and power supply or feedback output (B). 5. Versatile Applications: This pack of 1K Pot Potentiometers is suitable for a wide array of projects, including volume controls
| Specification | Details |
|---|---|
| Resistance Value | 1 kΩ (1 kiloohm 1000 Ω) |
| Tolerance | ±10% |
| Power Rating | 500 mW (half-watt) |
| Temperature Coefficient | ±200 ppm/°C |
| Number of Leads | 2 (1 wiper 1 end to end) |
| Pack Quantity | 5 potentiometers |
| Material | Carbon composite or ceramic |
| Operating Temperature Range | -55°C to +120°C |
| Mounting Style | Through-hole (axial) |
