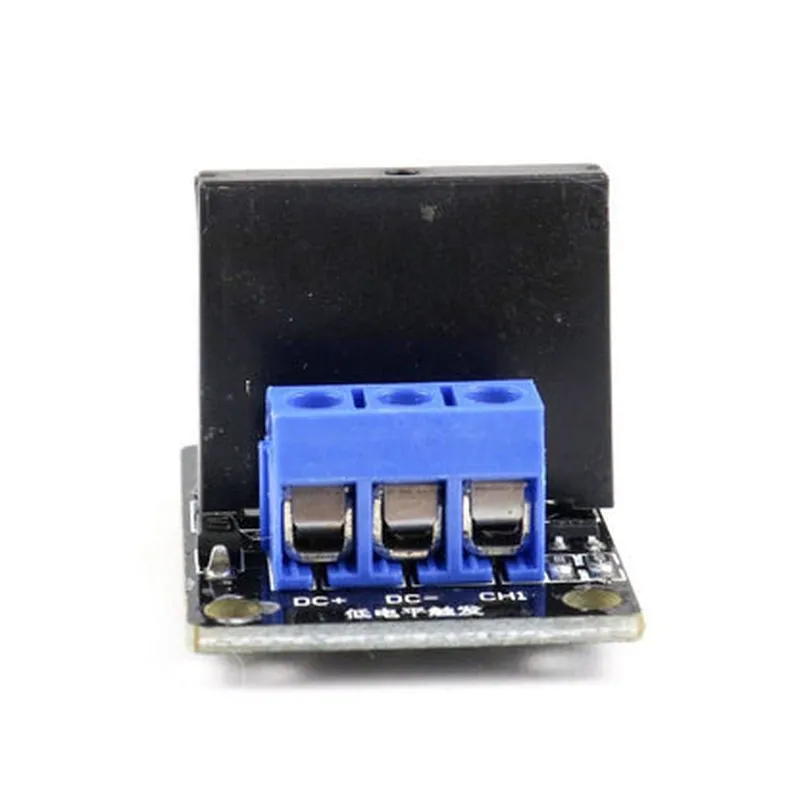

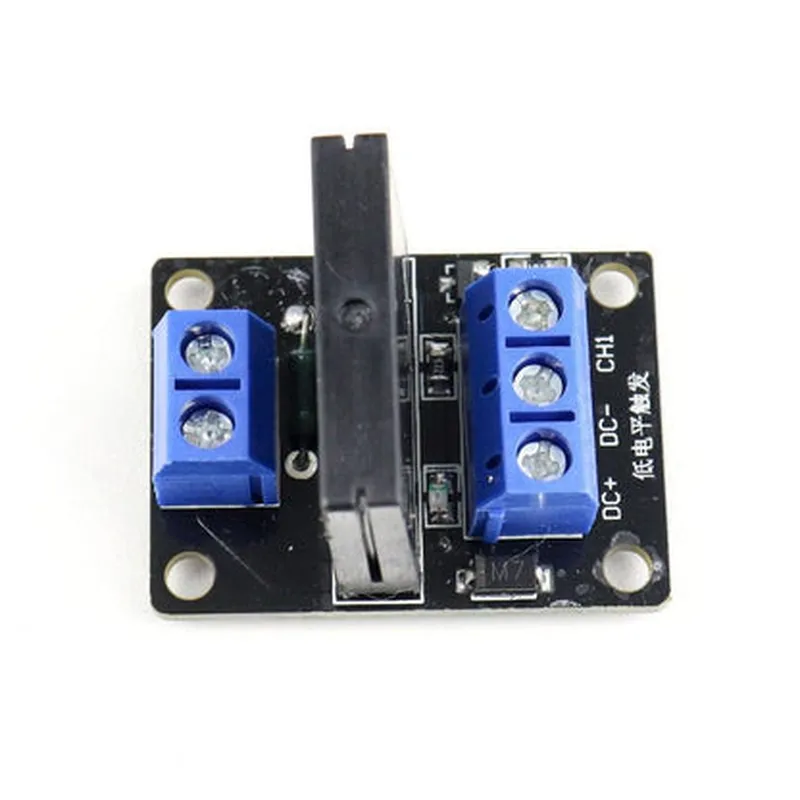

Description: 1. The 5V 1 Channel Solid State Relay (SSR) Module is an electronic switching device that operates on a 5V DC power supply, enabling safe and reliable control of inductive loads via a solid state switch. 2. Features: It has a single channel operation, meaning it can control one load at a time. The SSR module offers zero voltage switching, which ensures no voltage is applied to the controlled load during the switching process, thereby preventing electrical arcs and reducing power consumption. 3. Switching Characteristics: This module features fast switching times, typically in the range of tens to hundreds of microseconds, allowing for quick response to control signals. It also provides high contact bounce suppression, ensuring stable and reliable switching operation even with rapidly changing loads. 4. Versatility: The 5V 1 Channel SSR Module is suitable for various applications, such as controlling lights, motors, pumps, and other electrical devices, making it a versatile componen
| Specification | Details |
|---|---|
| Specification | Detail |
| Input Voltage | 5V (DC) |
| Output Type | Solid-State Relay (SSR) |
| Number of Channels | 1 |
| Control Method | Digital (TTL/CMOS Logic Level) |
| Trigger Signal | LOW: Off HIGH: On |
| Switching Capacity | Up to 16A (depending on load and heat sink) |
| Thermal Protection | Overheat protection with auto-reset |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Dimensions | Approx. 3cm x 2.5cm x 1.5cm |
| Weight | Approximately 10 grams |
| Certification | CE RoHS compliant |
| Material | High-quality plastic and metal components |
