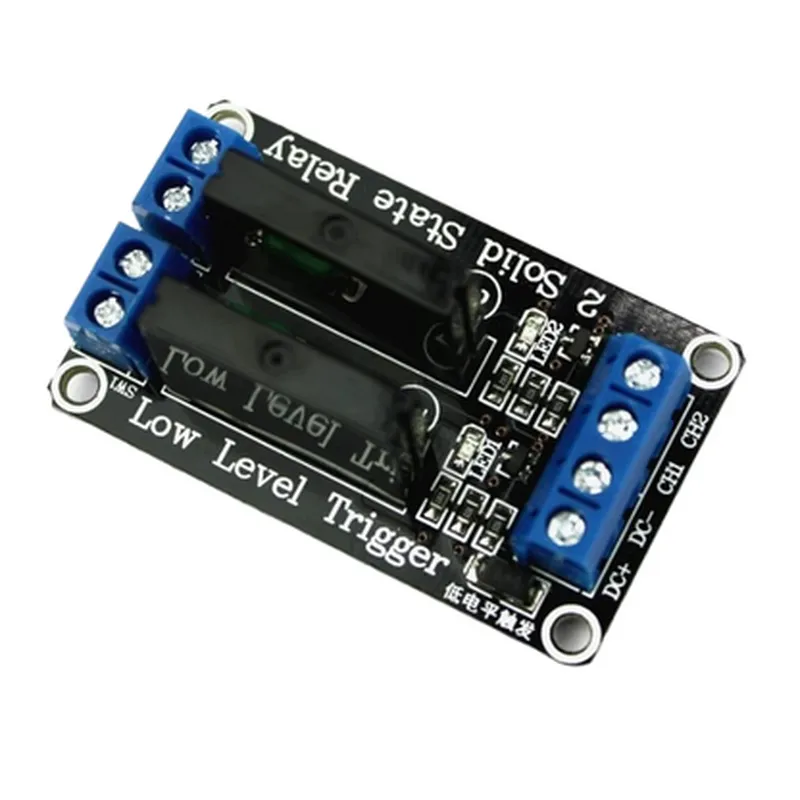

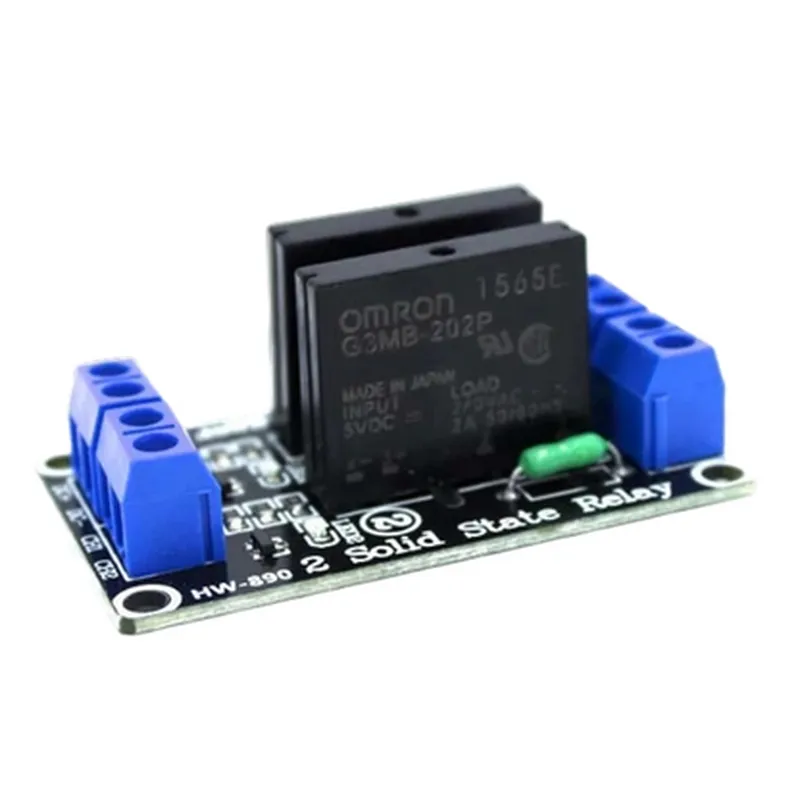

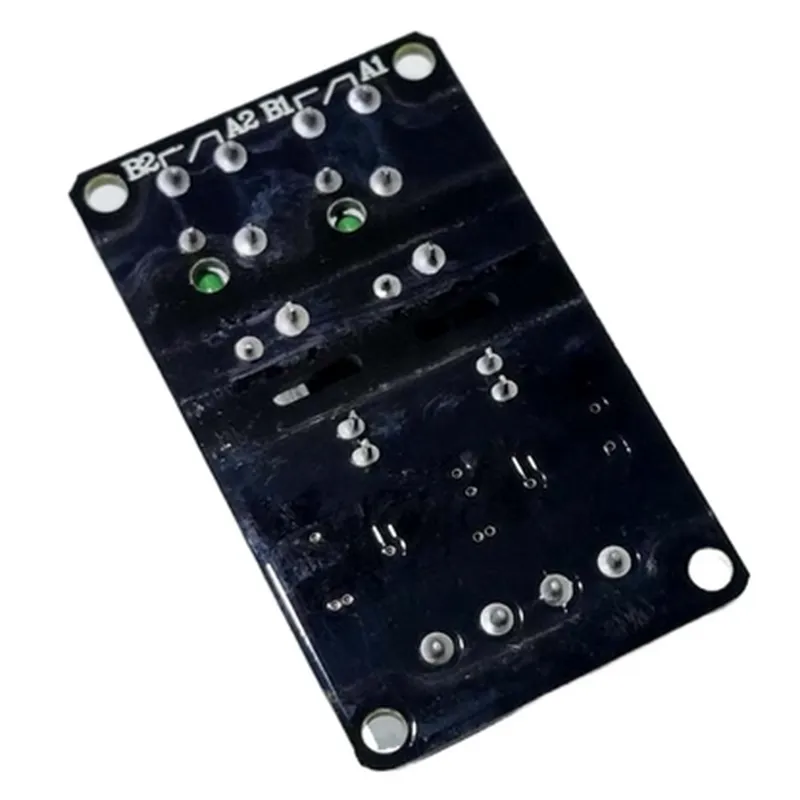

Description: 1. The 5V 2 Channel Solid State Relay (SSR) Module is a digital switch that allows the control of inductive loads or high voltage devices using low voltage logic levels without the need for an external optocoupler or magnetic contact. 2. Power Consumption: This module operates at a supply voltage of 5V DC and has a power consumption of approximately 30mA per channel, making it energy-efficient and suitable for various IoT projects. 3. Versatile Applications: The 2 Channel SSR Module is widely used in various automation projects like home appliances control, lamp dimming, motor control, and HVAC systems. It can also be employed in industrial processes, robotics, or even in large-scale IoT installations. 4. High Load Capacity: Each channel of the module can handle a maximum load of 25A at 250V AC or DC, making it suitable for controlling high-power appliances and heavy machinery. 5. Quick Response Time: The SSR Module boasts an extremely fast response time of approximately 1ms per c
| Specification | Details |
|---|---|
| Supply Voltage | 5V DC |
| Input Logic Level | TTL (CMOS) 3-5V |
| Output Current | Up to 10A per channel |
| Switching Frequency | Up to 30 kHz |
| Heat Dissipation | Self-cooling no additional cooling required |
| Insulation Resistance | ≥100 MΩ between channels and GND |
| Channel Isolation | Electrical isolation between channels |
| Dimensions (mm) | Typically 25mm x 15mm x 8mm |
| Weight (g) | Approximately 20-30 grams |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
