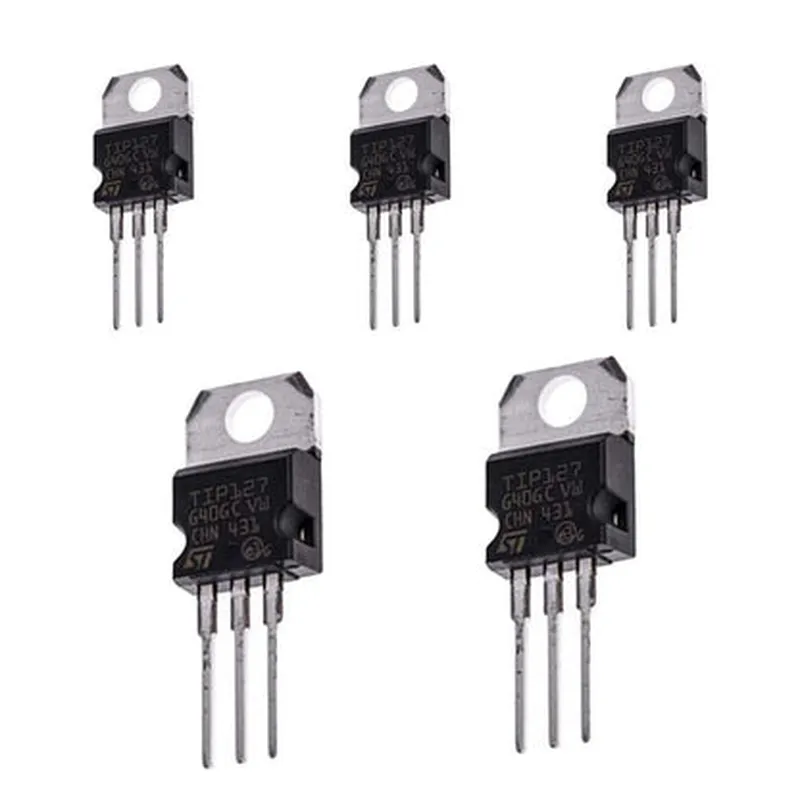

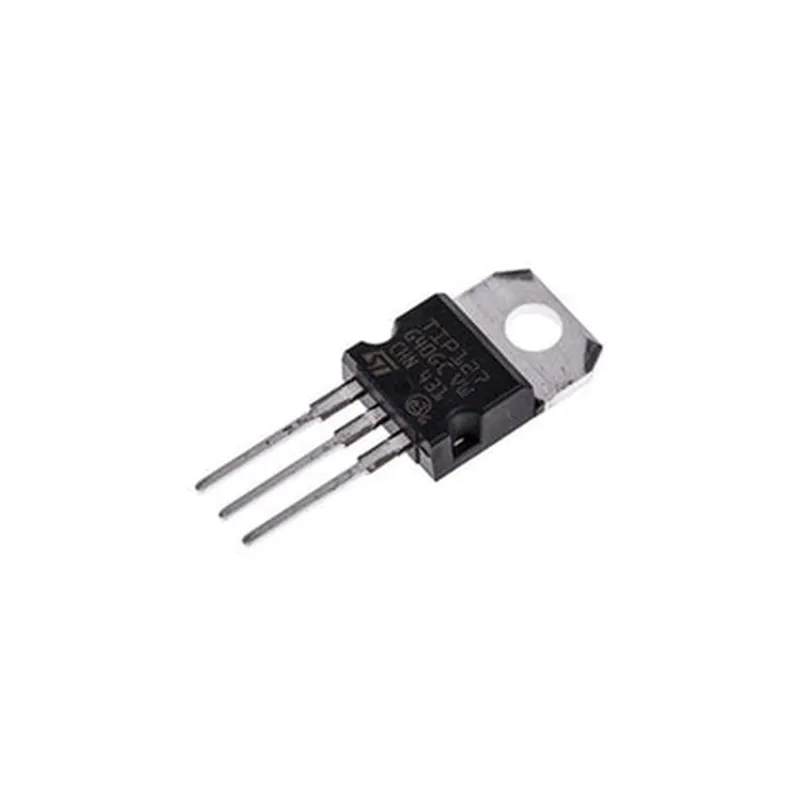

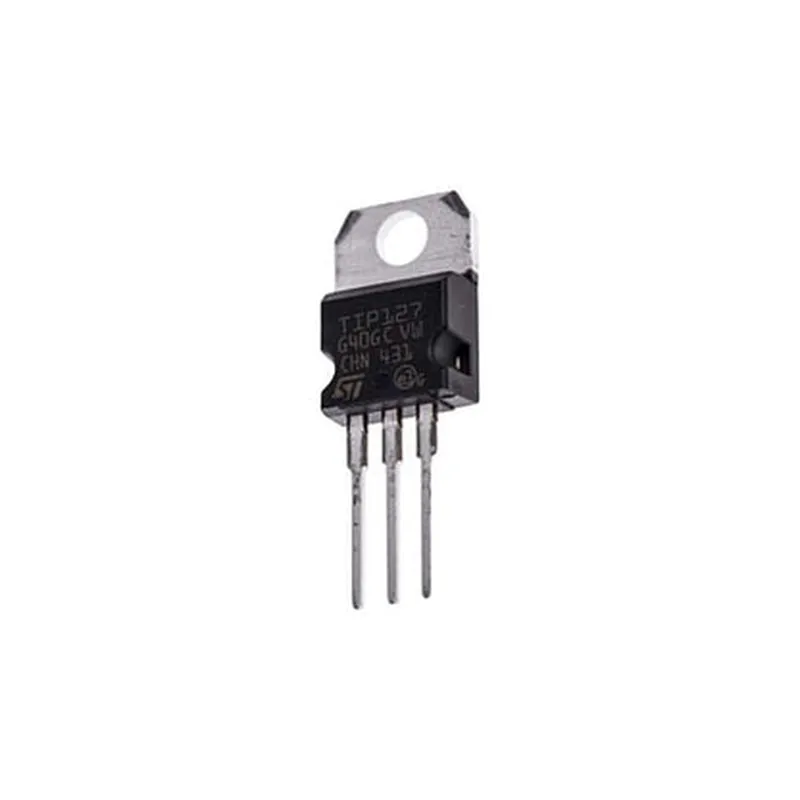

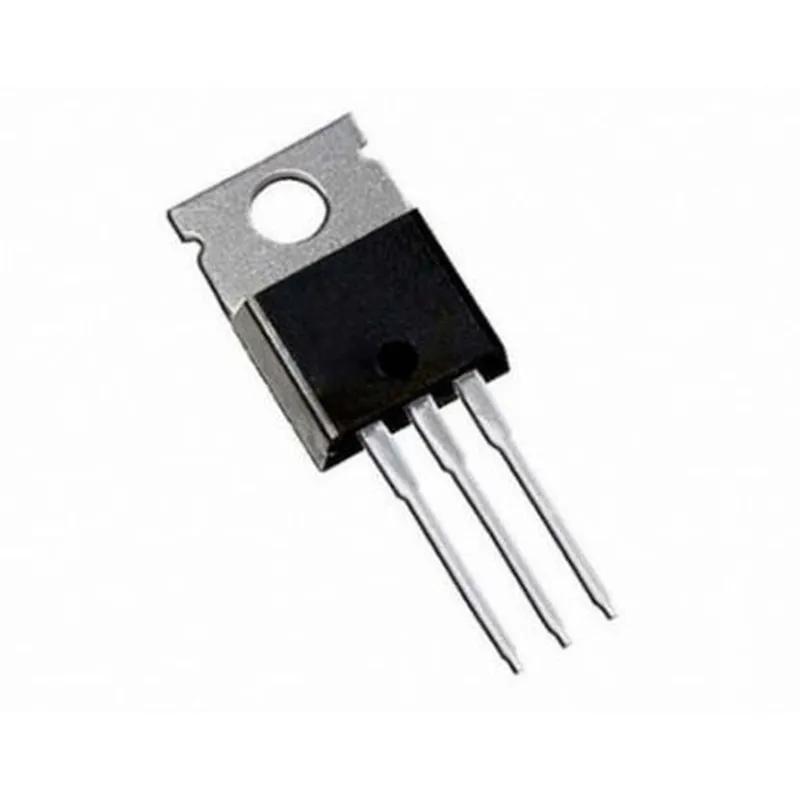

Description: 1. TIP127 is a Darlington transistor in the PNP configuration available in packs of five. Darlington transistors provide higher current gain than individual transistors, making them ideal for power applications. 2. Features: Each TIP127 transistor has a maximum collector-emitter voltage (Vce) of 35V and a maximum collector current (Ic) of 800mA. It operates effectively over a temperature range of -65°C to +150°C. 3. Applications: TIP127 is commonly used as a power switch or an amplifier in various IoT projects and circuits requiring high current output, such as DC motor control, lamp dimming, and power supply applications. 4. Darlington Configuration: As a Darlington transistor, TIP127 has two transistors connected back-to-back to increase the overall current gain and lower the on-resistance, making it suitable for handling high loads. 5. Electrical Characteristics: Its typical forward voltage drop (Vce(sat)) is 6.9V, while the maximum reverse voltage (Vr) is 100V. The input resis
| Specification | Details |
|---|---|
| Package Type | TO-220 (Plastic) |
| Transistor Type | Darlington PNP |
| Number of Channels | 2 |
| DC Current Gain | 15000 (hFE) |
| Maximum DC Collector Voltage | 65 V |
| Maximum DC Emitter Voltage | 0.5 V |
| Collector-Base Voltage | ±60 V |
| Emitter-Base Voltage | ±6 V |
| Operating Temperature | -55°C to +150°C |
| Storage Temperature | -65°C to +150°C |
1. Stepper Motor Driver Expan...
1. PCA9685 is a 16-channel 12...
1. A 1-Channel 12V Relay Modu...
1. ULN2003 is a 7214A based 8...
1. L293D Motor Driver Board O...

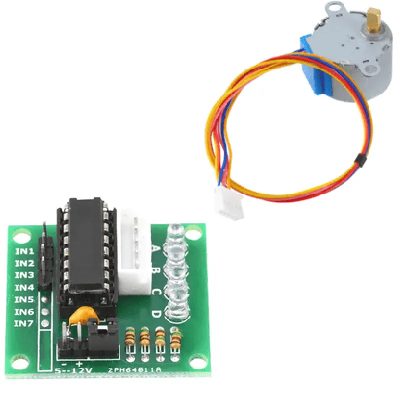

1. The ULN2003 Stepper Motor ...
