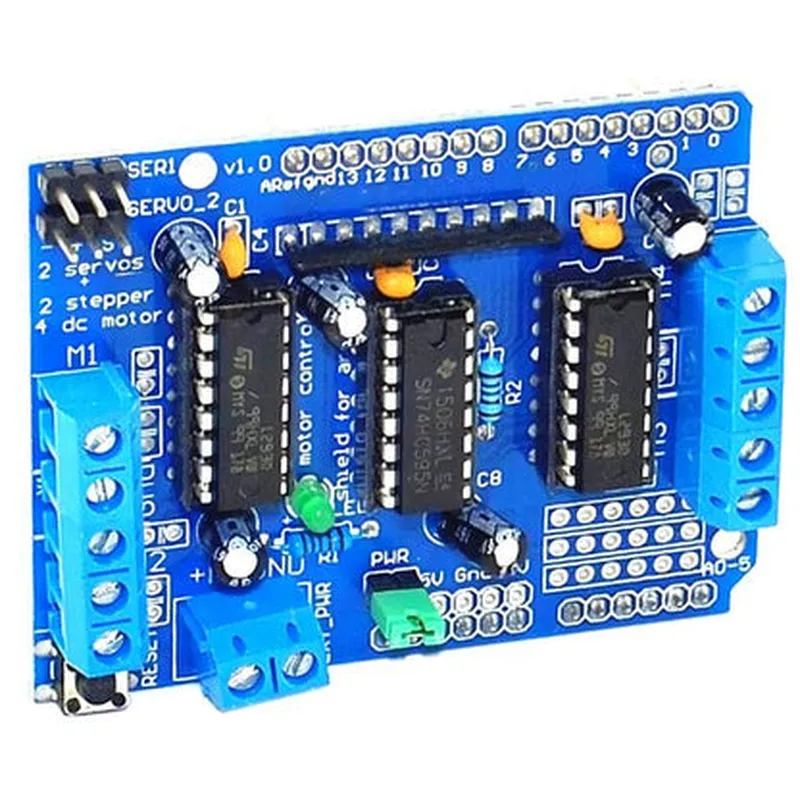

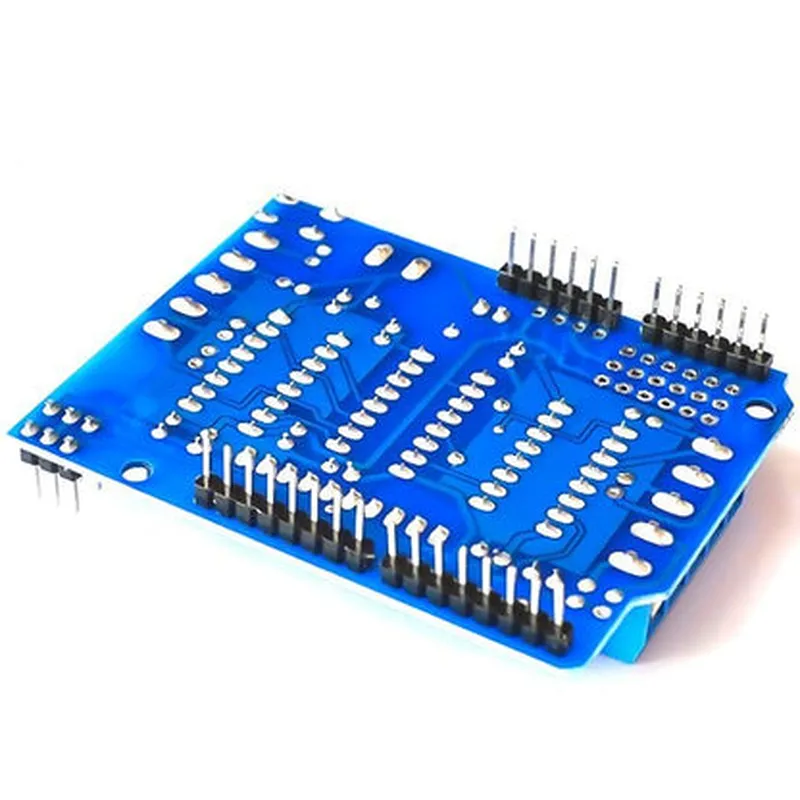

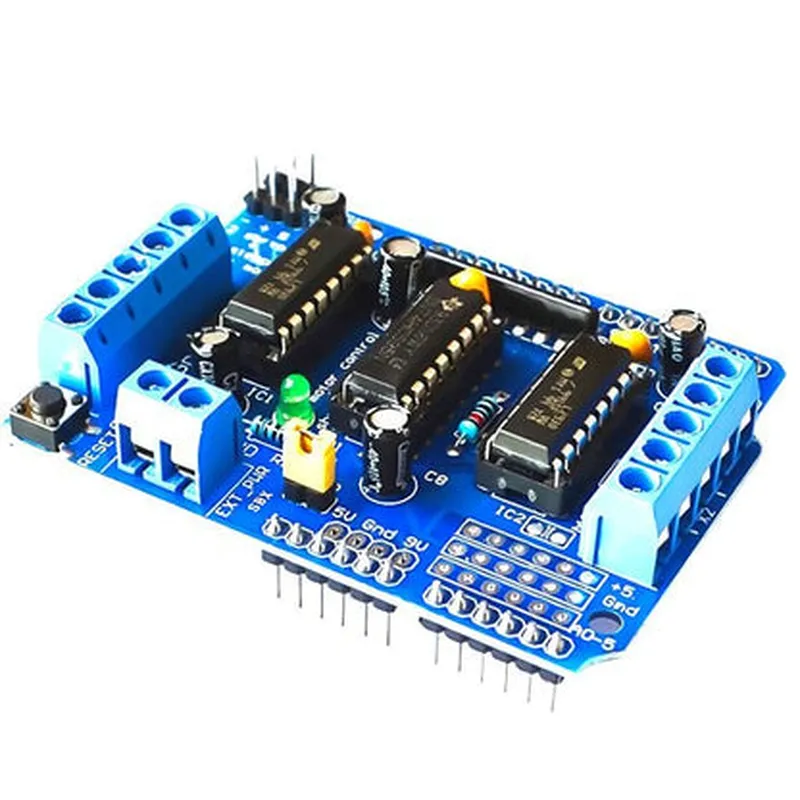

Description: 1. The Arduino L293D Motor Driver Shield is an add-on component designed to manage and control DC motors using an Arduino board. It utilizes the L293D chip for motor driving. 2. This shield can drive up to two DC motors with separate forward, reverse, and stop functionalities for each motor through its six outputs (three for each motor). 3. The L293D Motor Driver Shield provides protection against overcurrent by incorporating a flyback diode for each motor to prevent damage during operation. 4. It offers easy integration with Arduino as it is designed to fit directly onto the Arduino board, with clear pin labeling and minimal wiring requirements. 5. The shield comes with an enable input for controlling the operation of both motors independently using a single digital pin on the Arduino board. 6. It operates with a voltage range of 5V to 12V, making it suitable for various projects with different power supply needs. 7. This motor driver shield features protection against voltage
| Specification | Details |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Product Code | L293D |
| Number of Channels | 4 H-bridge motor driver channels |
| Channel Control | Independent with high and low-side drivers for each channel |
| Current Rating | Up to 600 mA per channel (max) |
| Voltage Rating | +5V to +36V (for VIN) up to +15V (for logic inputs) |
| Operating Temperature | -40°C to +85°C |
| Package Type | DIP-16 package |
| Pinout Compatibility | Compatible with Arduino Uno and Mega boards |
| Operating Frequency | 0 to 100 kHz |
| Sensitivity Current | Typically 10 mA (for logic inputs) |
| Input Logic Levels | TTL CMOS |
