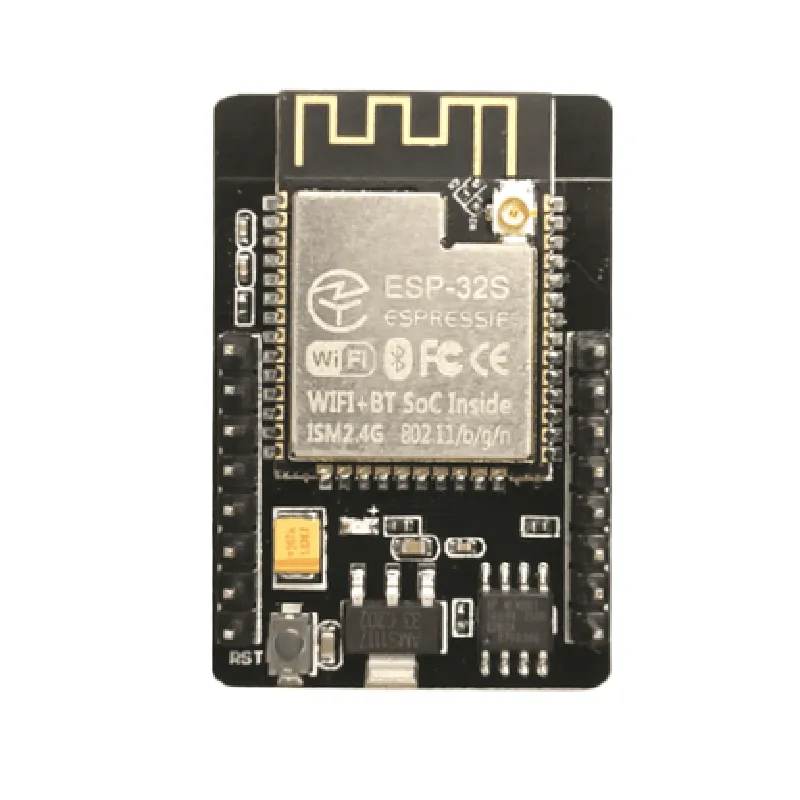

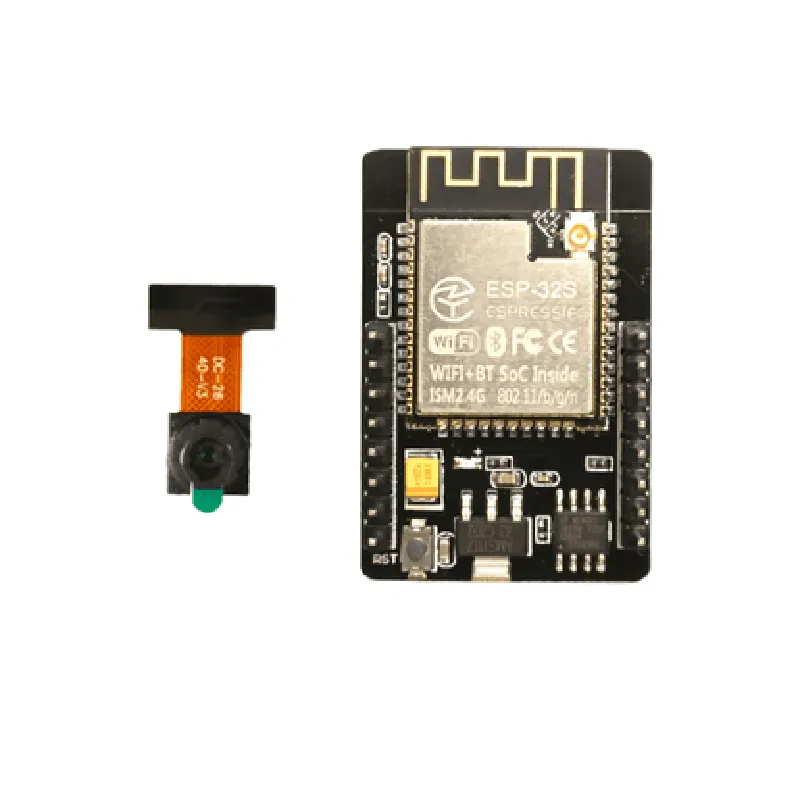

Description: 1. ESP32 CAM is a compact Wi-Fi module integrated with a 2-megapixel OV2640 camera, offering an all-in-one IoT solution for image processing applications. 2. Features ESP32 microcontroller with dual-mode Bluetooth and Wi-Fi capabilities, allowing wireless connectivity and control from various devices. 3. The onboard OV2640 sensor offers 16 effective pixels, providing 2-megapixel resolution images and the ability to record 720p HD video at 25fps. 4. Integrated camera module includes a fixed focus lens with a wide 80° angle of view, suitable for various IoT projects such as security systems, home automation, or object detection. 5. ESP32 CAM offers versatile interfaces like UART, I2S, SPI, and PWM, allowing easy integration with other components and sensors in your IoT project. 6. Built-in image processing functions, including edge detection, face recognition, and object recognition, enable advanced IoT applications without the need for external libraries or additional hardware. 7
| Specification | Details |
|---|---|
| Processor | Dual-core 32-bit LX6 microprocessor |
| Clock Speed | Up to 240 MHz |
| Memory | 520 KB SRAM 4 MB SPI Flash |

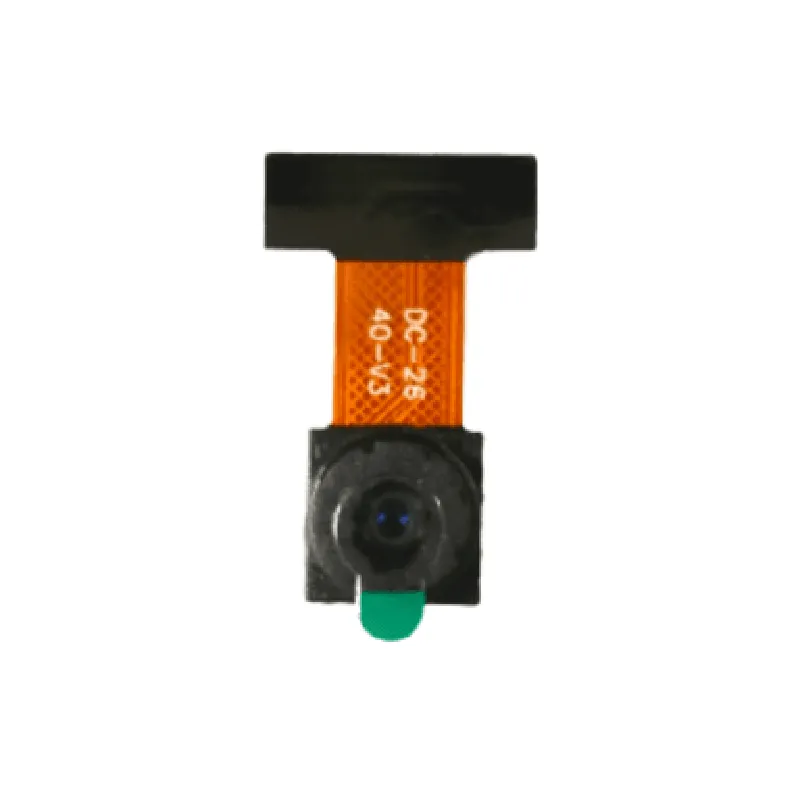

| Camera Module | OV2640 2MP Camera |
| Resolution | Up to 2048x1536 pixels |
| Field of View | 60° |
| Focal Length | 3.7 mm |
| Aperture | f/2.4 |
| Sensor Size | 1/4" |
| Image Sensor Type | CMOS |
| Communication | Wi-Fi (802.11 b/g/n) |
| Interface | UART I2C SPI I2S GPIO |
| Power Supply | 3.3V - 10V |
| Operating Range | -40°C to 85°C |
| Dimensions | 38mm x 31mm x 12.5mm |
