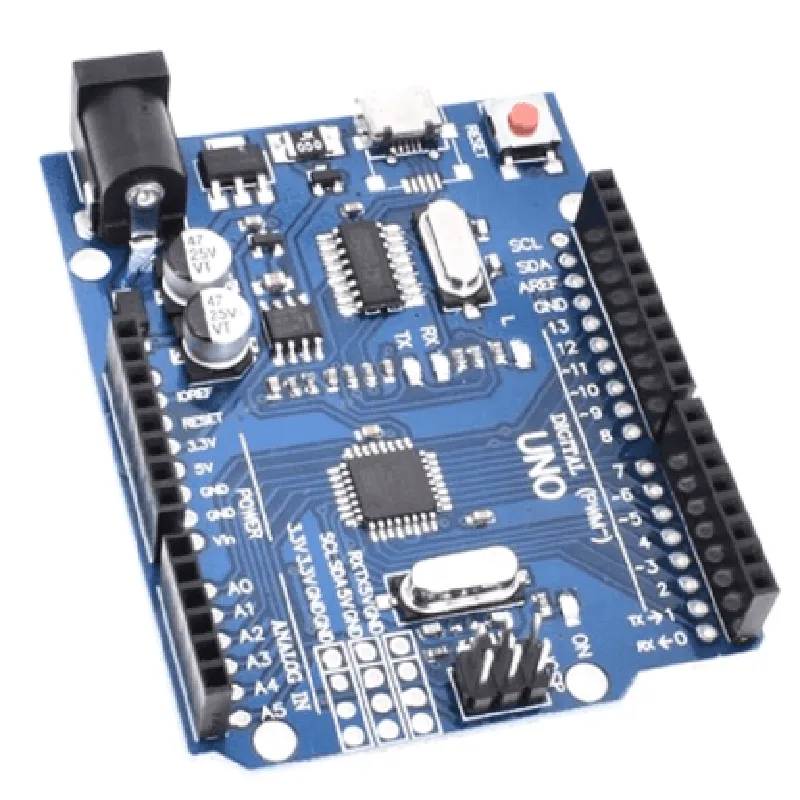

Description: 1. Microcontroller: Arduino Uno R3 is a microcontroller board based on the ATmega328P chip, capable of running the Arduino IDE and various libraries for IoT projects. 2. Development Board: It serves as a foundation for building various electronic projects with easy-to-use input/output (I/O) pins for digital and analog connections. 3. Compatibility: This Arduino Uno R3 is specifically designed to be CH340G USB ASIC chip-enabled, making it more versatile and compatible with a wider range of computers, especially those without native USB-to-serial support. 4. USB Connectivity: It features a built-in Micro USB port that allows for easy connectivity to your computer for programming and uploading sketches. 5. Digital I/O Pins: This development board comes with 14 digital input/output pins (of which 6 can be used as PWM outputs) that enable users to read sensor data, control LEDs, or interact with various other components in their projects. 6. Analog Input Pins: It also includes six ana
| Specification | Details |
|---|---|
| Processor | ATmega328P |
| Clock Speed | 16 MHz (8-bit AVR) |
| Memory | 32 KB Flash 2 KB SRAM |
| Input/Output Pins | 14 Digital I/O (6 can be used as PWM) |
| Analog Inputs | 6 |
| ADC Resolution | 10-bit (1.1 μs conversion time) |
| Communication | Micro USB UART (serial) SPI |
| Voltage Range | 7-12V |
| Current Rating | 800mA |
| Dimensions | 68.6mm x 53.4mm |
| Operating Temperature | -40°C to 85°C |
| Certifications | FCC CE RoHS |
