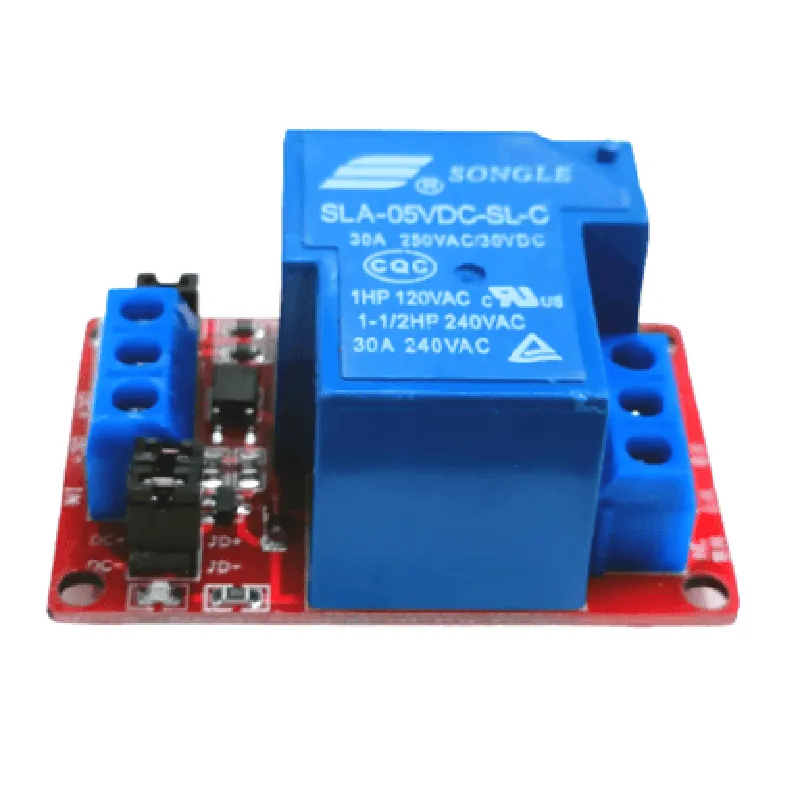

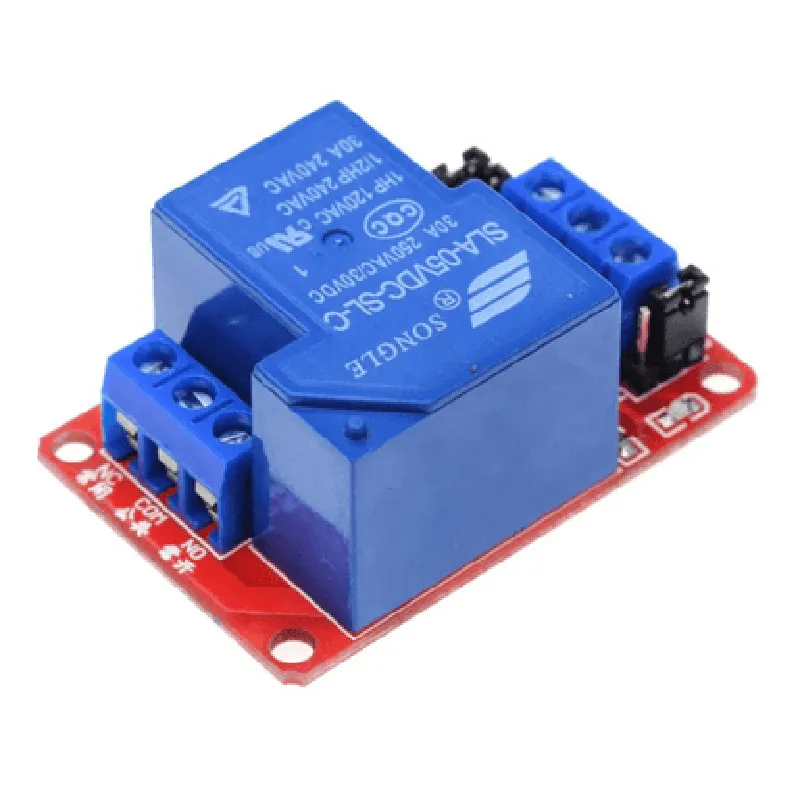

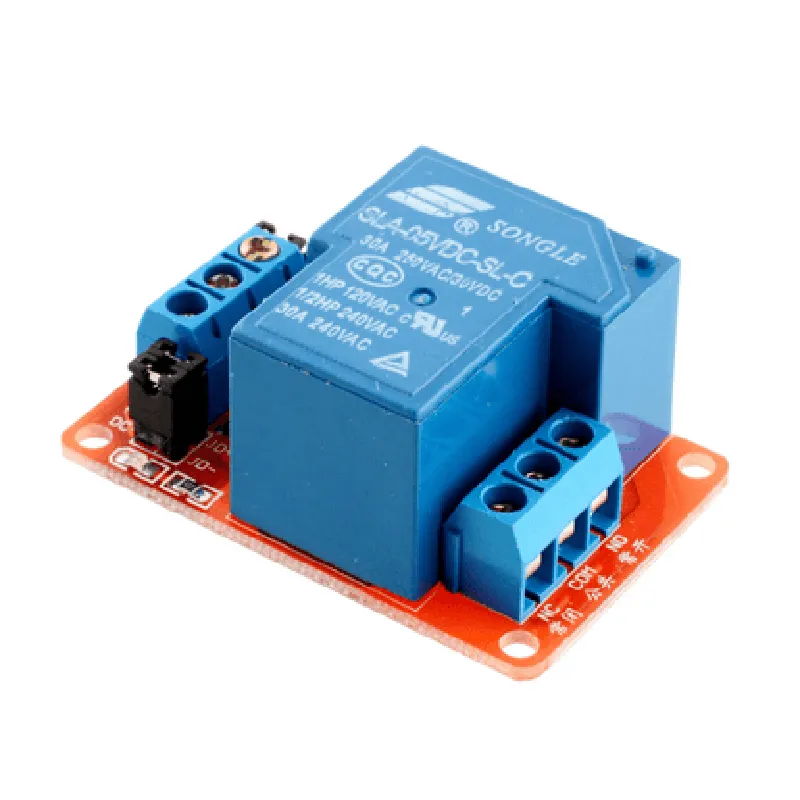

Description: 1. The 5V 30A 1-Channel Relay Module is a versatile electronic component designed to control high-current electrical circuits using low power signals. 2. Features: This module includes a single relay capable of handling up to 30 amperes and 5 volts DC input. It's compact in size, making it ideal for various IoT projects. 3. Applications: Ideal for controlling heavy-duty appliances, motorized systems, and other high-power loads in Internet of Things (IoT) projects. 4. Versatile: Can be used with microcontrollers like Arduino or Raspberry Pi, making it suitable for hobbyists and professionals alike. It can also be utilized in home automation systems to remotely control appliances. 5. Safety Precautions: Proper insulation and a protective enclosure ensure the module is safe to use around high-voltage applications. Always double-check connections before powering on to avoid electrical hazards. 6. Easy Setup: Uses a normally open (NO) relay configuration, which makes it easy to implem
| Specification | Details |
|---|---|
| Voltage Input | 5V DC Operating voltage range: 3.9V - 6V |
| Relay Contact Rating | 30A @ 250V AC 10A @ 280V DC |
| Switching Capacity | 300VA @ 125V AC |
| Operating Frequency | 20Hz to 50Hz |
| Number of Channels | 1 Channel |
| Relay Type | SPDT (Single Pole Double Throw) |
| Module Size | 63mm x 36mm x 24mm |
| Weight | Approximately 60 grams |
| Operating Temperature | -20°C to 85°C |
| Storage Temperature | -40°C to 100°C |
