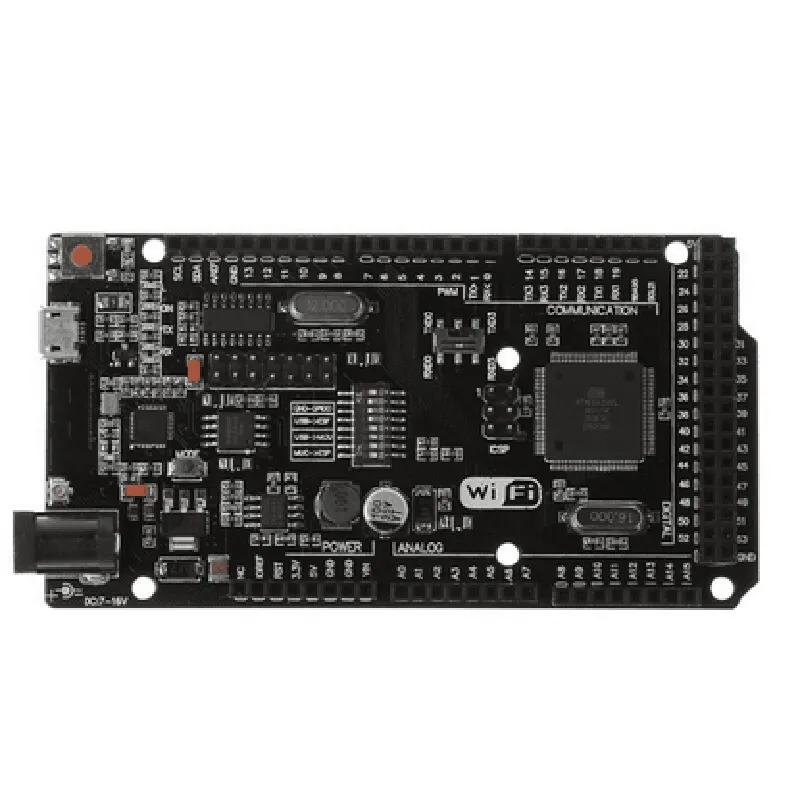

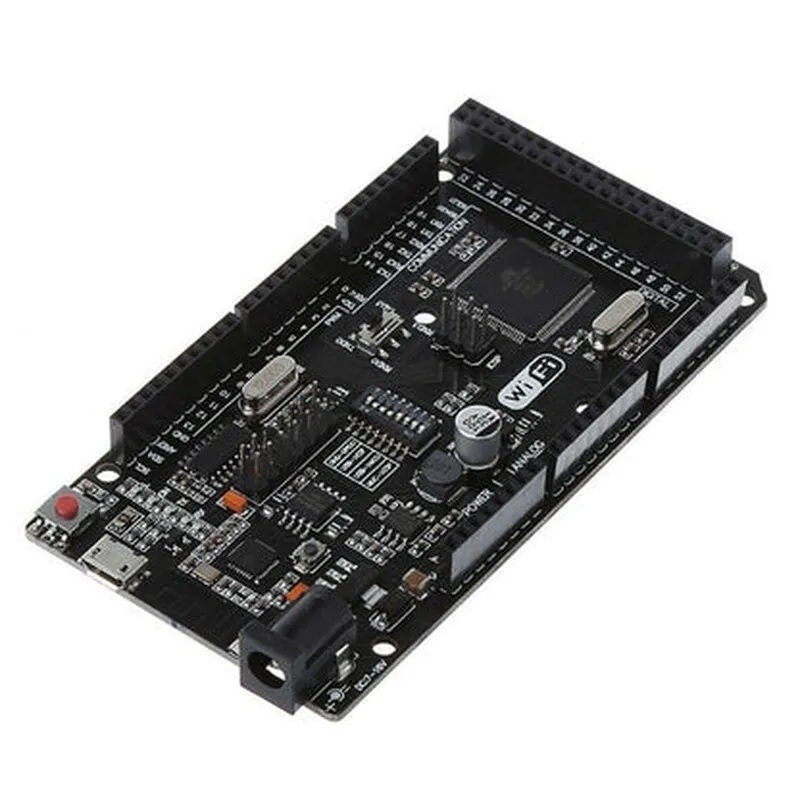

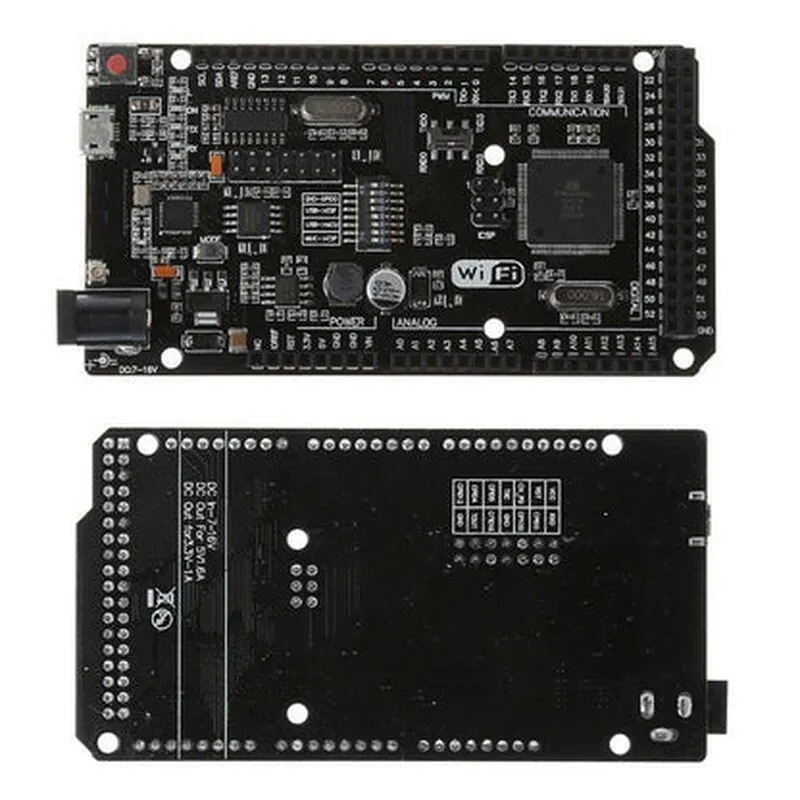

Description: 1. Microcontroller: Arduino Mega 2560 is a microcontroller board based on the ATmega2560 chipset, which provides 256KB Flash Memory, 256KB SRAM, and 4kb EEPROM for storing code and data. 2. Expansion: The Mega 2560 has a total of 54 input/output pins (of which 15 can be used as PWM outputs and 16 as Analog Inputs), making it an excellent choice for larger projects that require more I/O connections than the standard Arduino boards. 3. Wi-Fi Module: The board comes with a built-in NodeMCU ESP8266 WiFi module, enabling wireless communication and connectivity to the internet or local networks. This feature extends the capabilities of Arduino projects, allowing them to send/receive data remotely. 4. Compatibility: The board is compatible with the popular CH340G USB-to-Serial converter, simplifying the programming process and making it easier to connect the board to a computer or other devices. 5. Versatility: This unique combination of an Arduino Mega 2560, NodeMCU ESP8266, and CH340G
| Specification | Details |
|---|---|
| Microcontroller | ATmega2560 |
| Flash Memory | 256 KB |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Operating Frequency | 16 MHz |
| Analog Inputs | 16 (6x analog inputs 10-bit ADC) |
| Digital I/O Pins | 54 (14 x PWM 12 x Analog Com) |
| UARTs | 4 (Hardware UART) |
| SPI | 1 (Master and Slave) |
| I2C | 1 (Multi-master bus) |
| USB | USB 2.0 CH340G USB to Serial Converter |
| Wi-Fi Module | Node MCU ESP8266 |
| Operating System | Arduino IDE Compatible |
| Power Supply | 7-12V DC |
| Dimensions | 138 mm x 101 mm x 18 mm |
1. Microcontroller: Arduino N...
1. Node MCU ESP8266 V3 is a m...

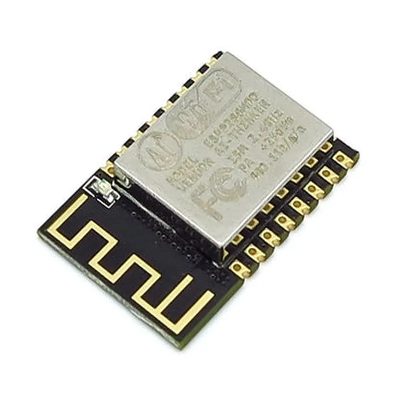

1. ESP8266 12F is a Wi-Fi mic...
