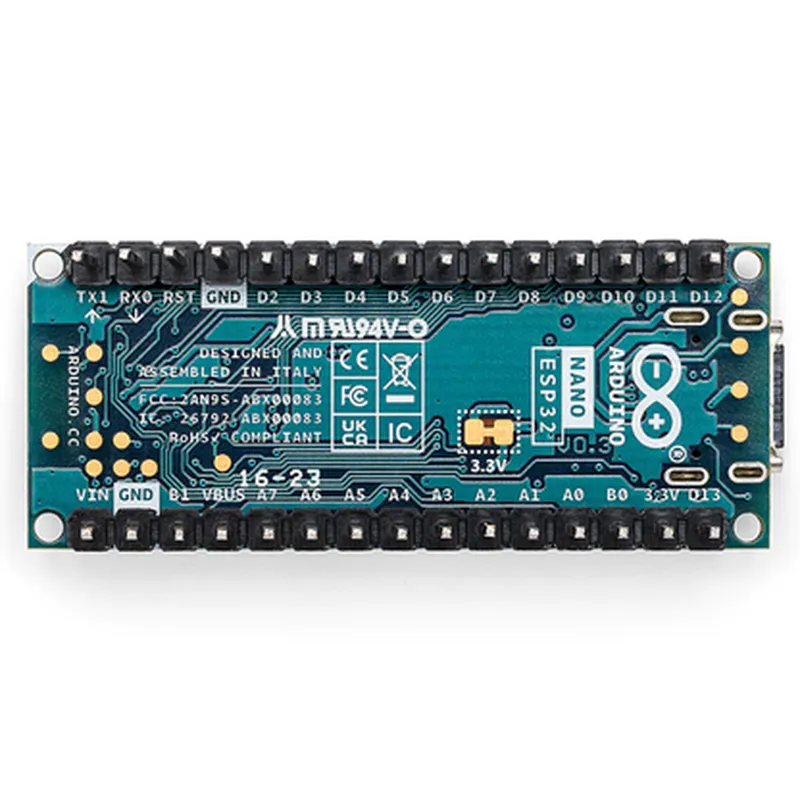

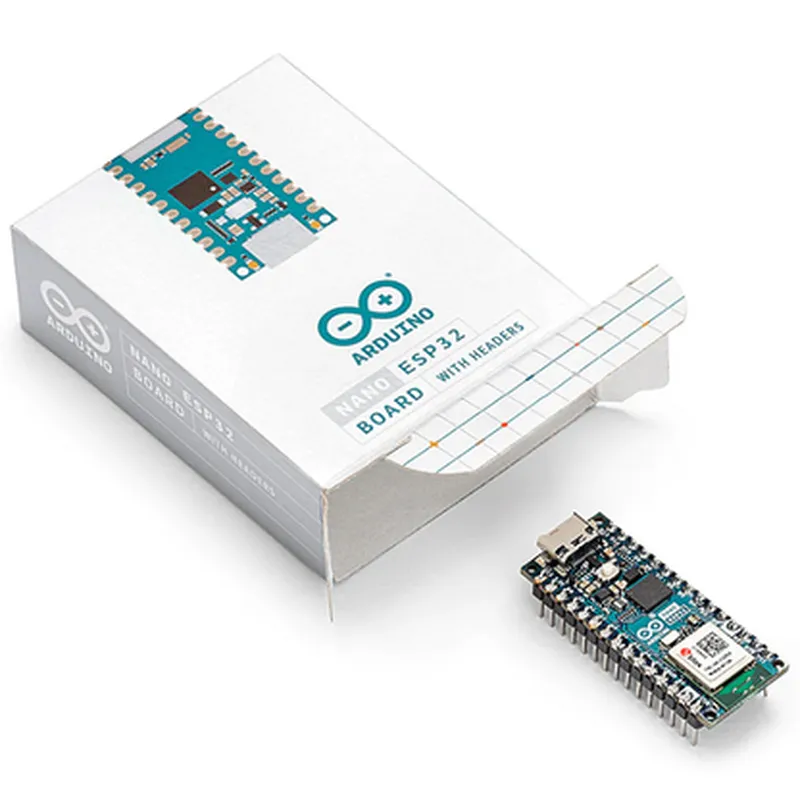

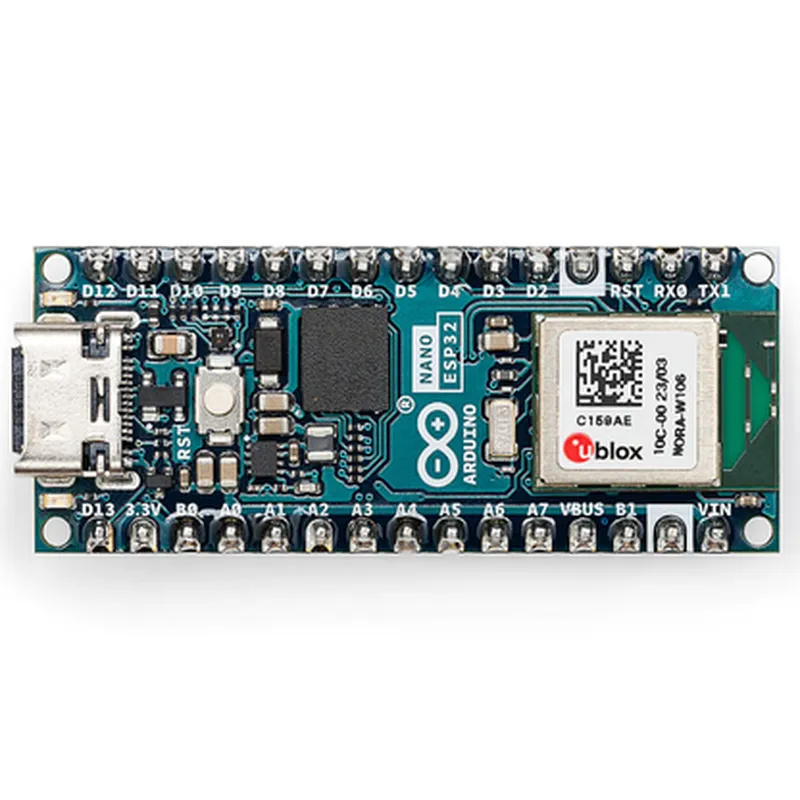

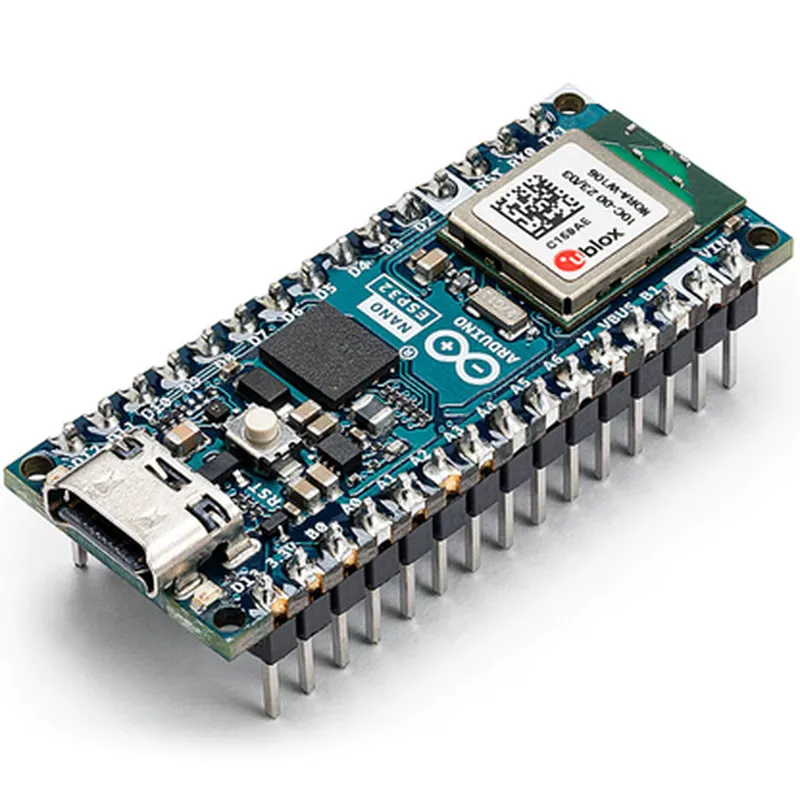

Description: 1. Microcontroller: Arduino Nano ESP32 is a microcontroller board based on the Espressif Systems ESP32-S2 chip, combining the capabilities of an Arduino Nano with WiFi and BLE (Bluetooth Low Energy) connectivity. 2. Versatile I/O: Featuring 26 multifunctional input/output pins, the Arduino Nano ESP32 can be used to connect various sensors, actuators, and peripherals for IoT projects. 3. WiFi & BLE Connectivity: The ESP32 chip integrated into the board enables wireless communication via WiFi (up to 15 Mbps) and BLE, allowing easy integration with other devices and networks. 4. Flash Memory: The Arduino Nano ESP32 has onboard flash memory of 4MB (QSPI), which is suitable for storing larger programs and data sets compared to typical Arduino Nanos. 5. USB-C Interface: A modern USB-C interface is used for programming, powering the board, and communication with a PC or other devices. This interface supports both Charging and DAPLink (serial debugging). 6. Power Management: The ESP32 ch
| Specification | Details |
|---|---|
| Processor | Dual-core 32-bit LX6 microprocessor @ up to 240 MHz |
| Memory | 520 KB of SRAM and 4 MB of PSRAM (expandable) |
| Storage | Not applicable (Flash memory not included) |
| Communication Protocols | Wi-Fi (802.11b/g/n) and Bluetooth 5.0 |
| Connectivity | 2 x SPI 2 x I2C 3 x UART 1 x USB OTG 1 x SD card slot |
| Analog Inputs/Outputs | 16-bit ADC (up to 18 channels) 10-bit DAC (1 channel) |
| Digital Pins | 33 GPIO pins with interrupt/pwm/freq capabilities |
| Power Supply | 5V @ up to 500 mA via USB or 3.3V @ up to 250 mA via VBUS |
| Operating Temperature Range | -40°C to +85°C (Industrial temperature range) |
| Dimensions | 45 mm x 30 mm x 13 mm (LxWxH) |
| Weight | Approximately 20 grams |
| Certifications/Compliance | CE FCC RoHS compliant |
1. ESP8266 12F is a Wi-Fi mic...

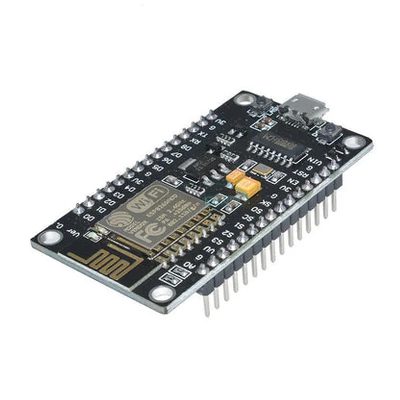

1. Node MCU ESP8266 V3 is a m...
1. Microcontroller Unit (MCU)...
1. The M5Stack PLC Proto Indu...

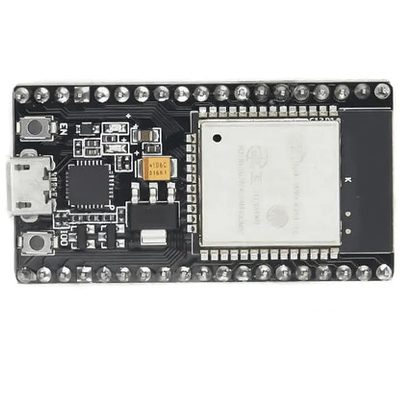

1. ESP32 NodeMCU Development ...
