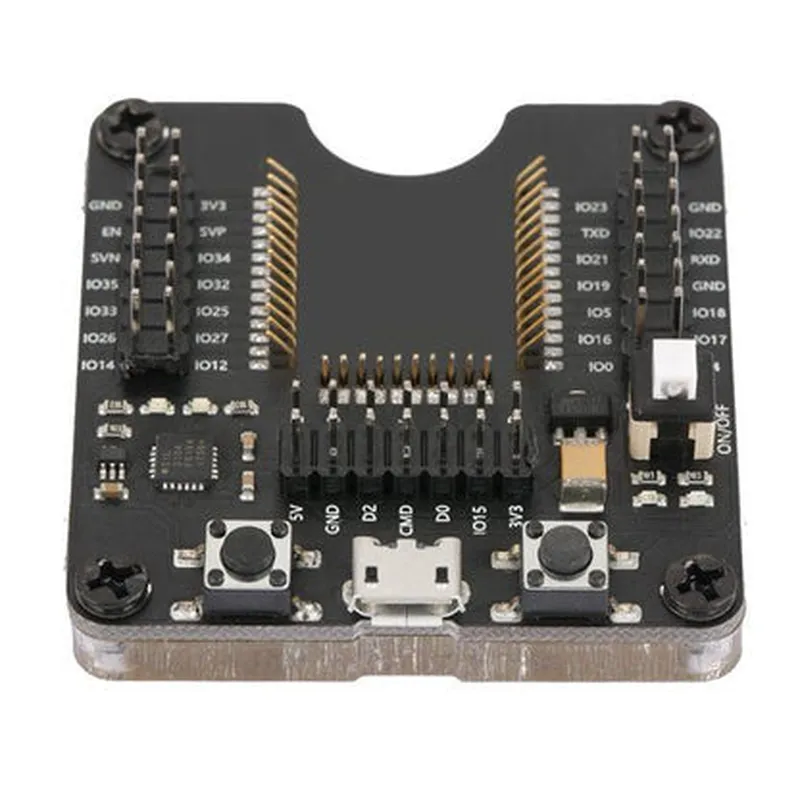

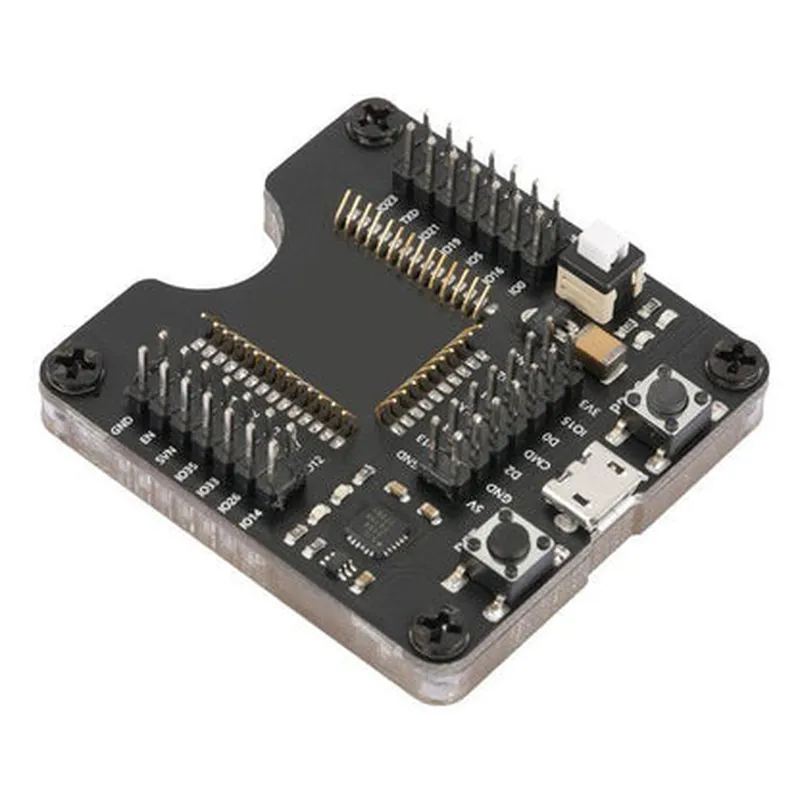

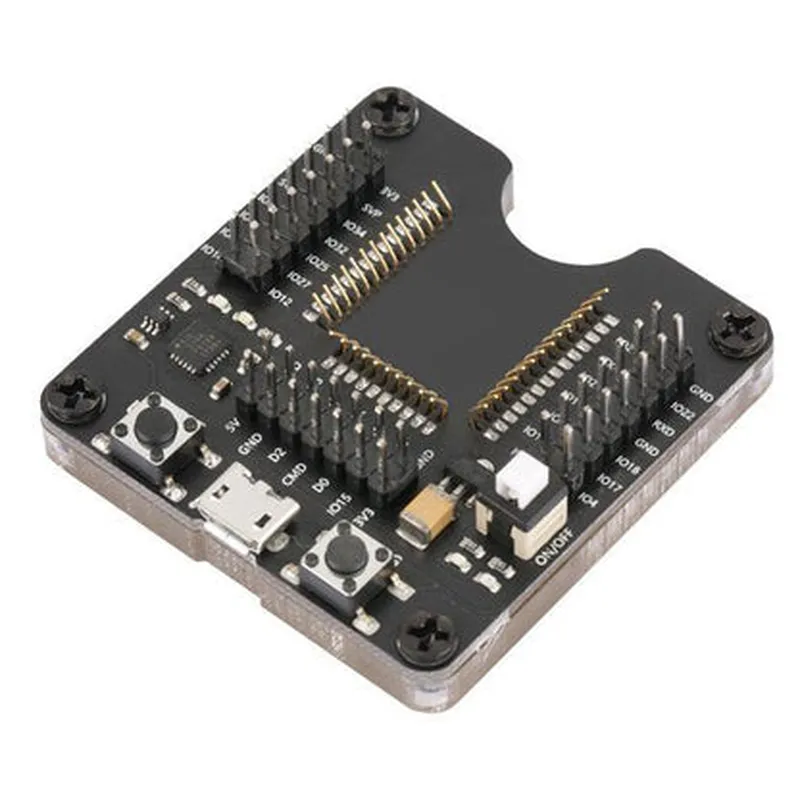

Description: 1. ESP32 Wroom Programming Jig is an essential tool for programming ESP32 microcontrollers outside of a development board's integrated programmer. 2. Featuring a 4-pin SWD interface, the jig supports in-circuit serial wire debugging (ICSWD), allowing for real-time observation and analysis of code execution. 3. The ESP32 Wroom Programming Jig is compatible with various ESP32 microcontrollers, including the ESP32S0, ESP32S2, ESP32WROOM, and ESP32-SOLAR versions. 4. This jig simplifies the process of programming multiple ESP32 boards in parallel without requiring individual development kits for each one. 5. The programming jig is also beneficial for prototyping and testing IoT projects when using custom PCBs, where a development board might not be available or suitable. 6. This compact device can be used with popular software environments like Arduino IDE, PlatformIO, or the ESP32 IDF (Internet of Things Development Framework). 7. The programming jig includes a 4-pin header connect
| Specification | Details |
|---|---|
| Module Type | ESP32 Wroom 32-pin QFN Package |
| Microcontroller | Espressif Systems ESP32-D0WDQ6-V3 |
| Clock Speed | Up to 240 MHz |
| Memory | 520 KB of RAM 4 MB of Flash |
| Communication | Wi-Fi (802.11 b/g/n) Bluetooth 4.2 |
| Dimensions | 45 mm x 25 mm x 3 mm |
| Weight | Approximately 6 grams |
| Operating Voltage | 3.0V to 3.6V |
| Power Consumption | Typical: 80mA Maximum: 250mA |
| Programming | Supports Serial Wire Debug (SWD) |
