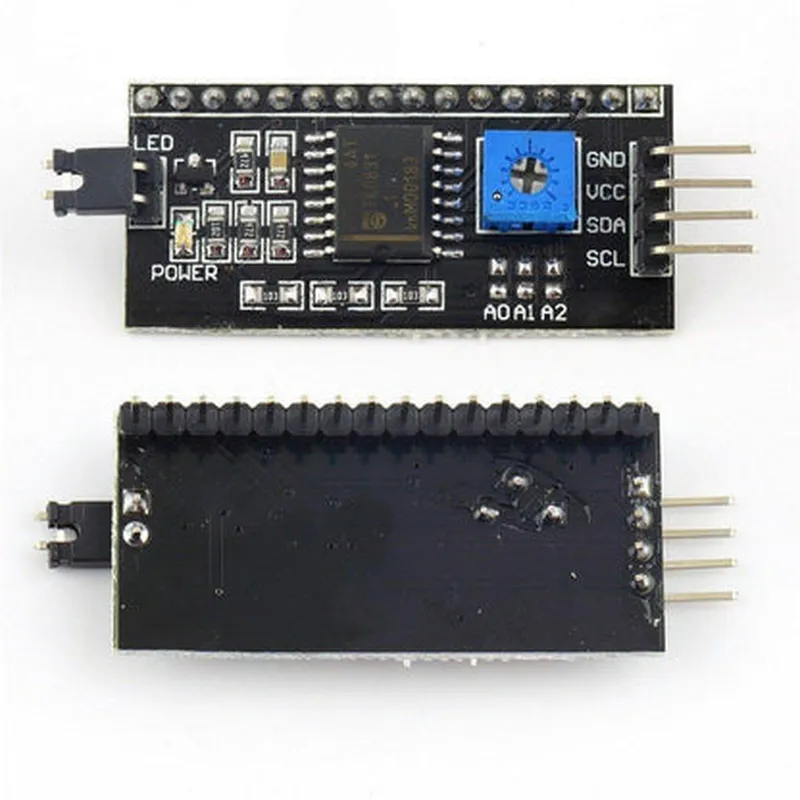

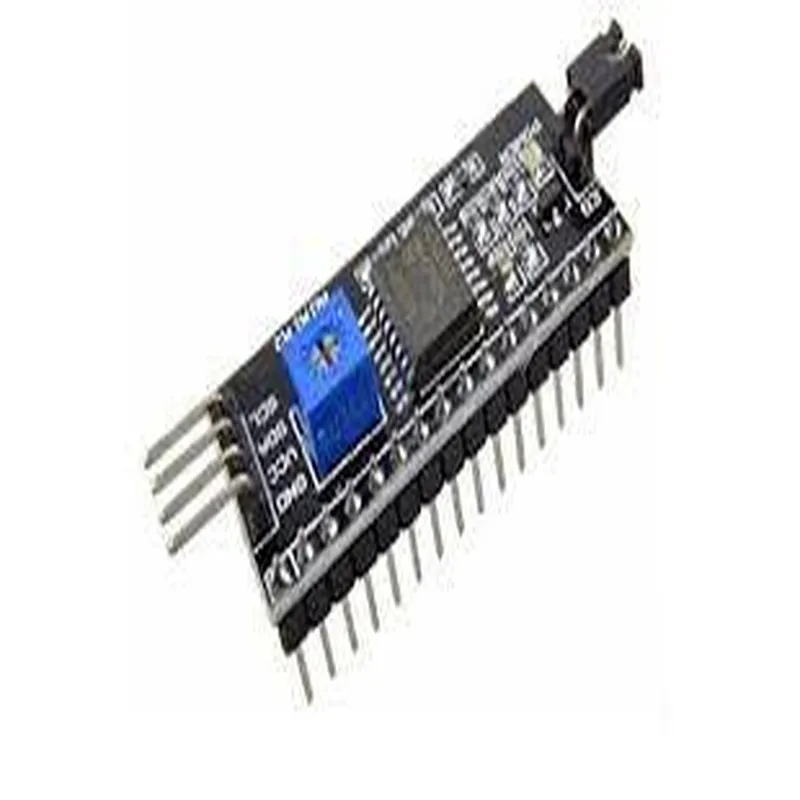

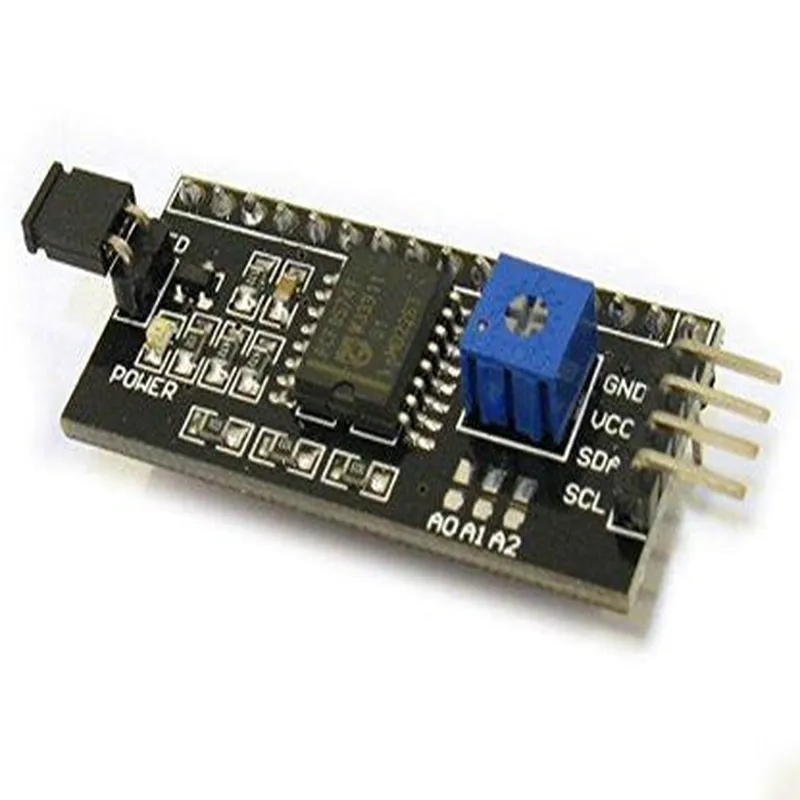

Description: 1. LCD Size and Display: This 16x2 I2C LCD interface adapter comes with a character size of 16 columns by 2 rows, providing ample space for displaying text and numbers in a clear format. 2. Interface: The adapter employs the I2C (Inter-Integrated Circuit) communication protocol, enabling it to connect easily and directly with a microcontroller or other compatible devices without requiring additional intermediaries or extensive wiring. 3. Easy Setup and Operation: With this interface, setting up the LCD display is straightforward; just connect the power, ground, SDA (Serial Data) and SCL (Serial Clock) lines to your microcontroller or I2C master device, and configure the software for the desired text or graphic displays. 4. Versatile Applications: Suitable for various projects such as data loggers, digital meters, and small-scale automation systems; this LCD adapter can be used in both educational and industrial applications to display real-time information or customized messages.
| Specification | Details |
|---|---|
| Specification | Detail |
| Display Type | 16 characters x 2 lines alphanumeric |
| Display Size | 5.0cm (H) x 7.6cm (W) |
| Backlight | Yes with adjustable brightness |
| Interface | I2C (SCL and SDA pins) |
| Operating Voltage | 3V to 5V |
| Communication Speed | Up to 400 kHz |
| Supply Current | Typically 10mA at 5V |
| Power-On Reset Pin | Yes can be used for PWR_ON signal |
| Contrast Control | Adjustable via potentiometer or I2C |
| LED Color | Green (standard) other colors available |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 68.5mm x 37mm x 8mm |
| Weight | Approximately 15 grams |
