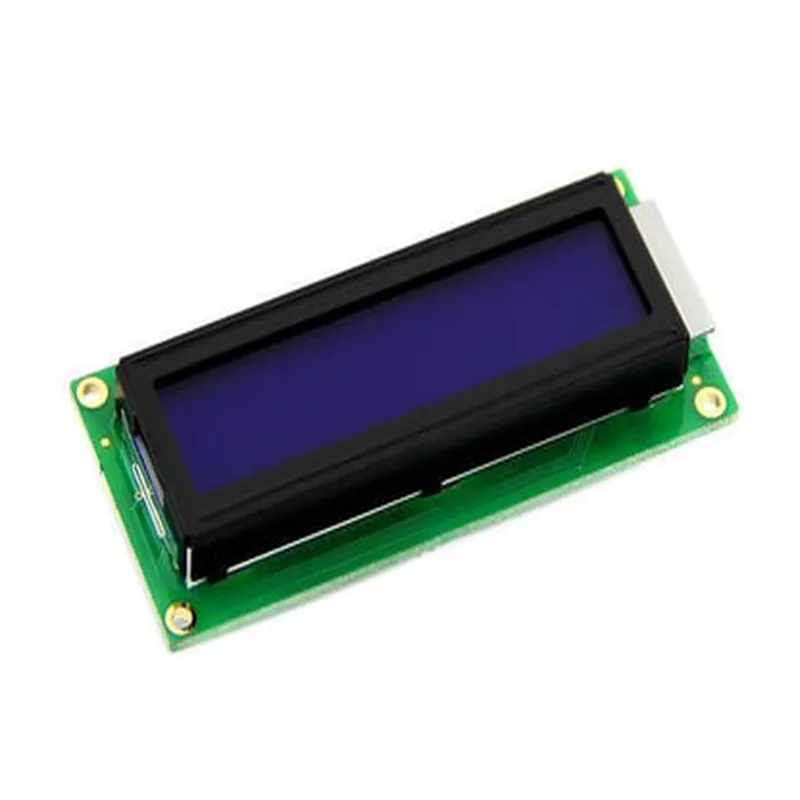

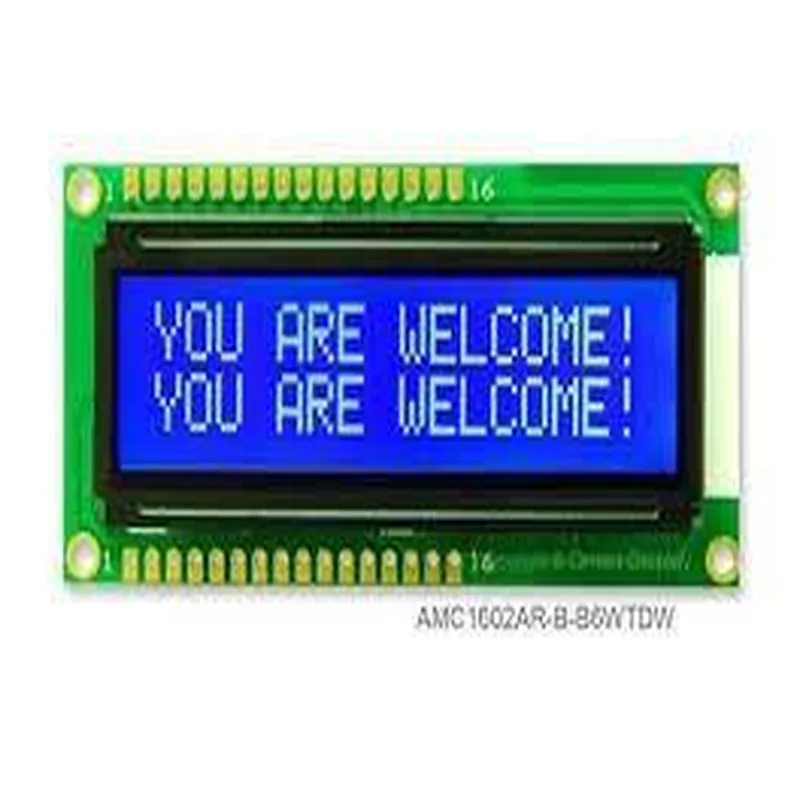

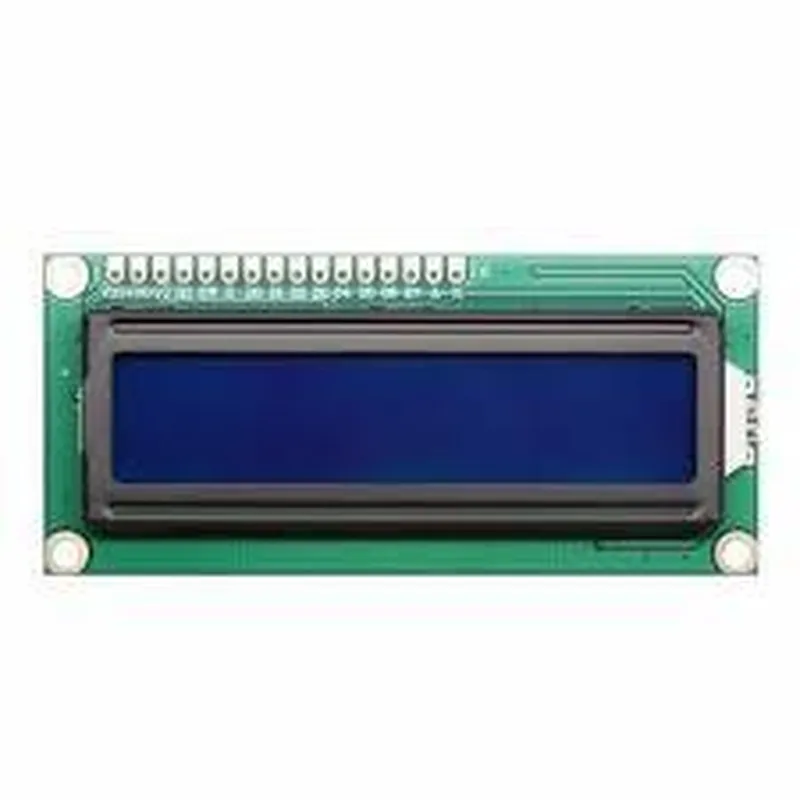

Description: 16x2 Blue LCD Module: 1. Display Size: This module features a 16 characters by 2 lines blue backlit LCD display, providing ample space for text-based information. 2. HD44780 Controller: It comes with an integrated HD44780 controller chip that makes it easy to interface with microcontrollers or computers using standard instructions like LCD.write(). 3. Versatile Interface: Supports both 4-bit and 8-bit interfacing, catering to various project requirements and hardware capabilities. 4. Backlit Display: The blue backlight enhances readability in low light conditions, making it suitable for use in different environments. 5. Power Requirements: Operates on a voltage range of 5V, ensuring compatibility with popular microcontroller platforms like Arduino and Raspberry Pi. 6. Easy-to-Use: Features a standard Hitachi HD44780 controller which simplifies the process of sending commands to control the LCD display through a simple serial communication interface. 7. Built-in 16x2 Character L
| Specification | Details |
|---|---|
| Display Type | Graphic 5x7 Dot Matrix |
| Display Size | 16 Characters x 2 Lines |
| Display Font | 5x7 Dots |
| Character Set | ASCII (128 characters) |
| Backlight Color | Blue |
| Operating Voltage | 4.8V to 6.5V |
| Supply Current | Typically 60 μA (Typical value) |
| Contrast Control | Analog (Potentiometer or Voltage) |
| Interface | Parallel or HD44780U interface |
| Pinout | VCC GND RS E DB0-DB3 |
| Environmental Rating | Operating temperature: -20°C to +70°C |
| Power Consumption | Typical value (max): 150 mW |
